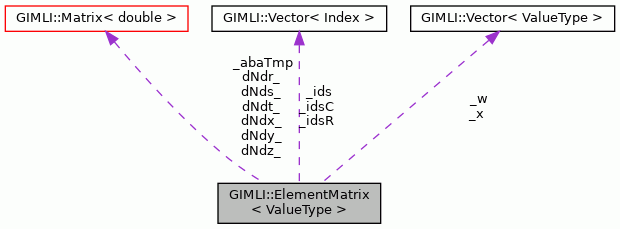

Collaboration diagram for GIMLI::ElementMatrix< ValueType >:

Public Member Functions
	ElementMatrix (Index dof=0)

const Vector< ValueType > &	operator[] (Index row) const

void	resize (Index rows, Index cols=0)

ElementMatrix< ValueType > &	operator+= (const ElementMatrix< ValueType > &E)

Index	size () const

Index	rows () const

Index	cols () const

const ValueType &	getVal (Index i, Index j) const

void	setVal (Index i, Index j, const ValueType &v)

void	addVal (Index i, Index j, const ValueType &v)

void	setMat (const Matrix< ValueType > &m)

Matrix< ValueType > *	pMat ()

const Matrix< ValueType > &	mat () const

const Vector< ValueType > &	row (Index i) const

Vector< ValueType >	col (Index i) const

void	fillIds (const MeshEntity &ent, Index nC=1)

void	setIds (const IndexArray &idsR, const IndexArray &idsC)

void	setIds (const IndexArray &ids)

const IndexArray &	ids () const

const IndexArray &	rowIDs () const

const IndexArray &	colIDs () const

const Index	idx (Index i) const

ElementMatrix< ValueType > &	u (const MeshEntity &ent)

ElementMatrix< ValueType > &	u2 (const MeshEntity &ent)

void	getWeightsAndPoints (const MeshEntity &ent, const RVector &w, const PosVector &x, int order)

Vector< ValueType >	stress (const MeshEntity &ent, const Matrix< ValueType > &C, const RVector &u, bool voigtNotation=false)

const Matrix< ValueType > &	gradientBase () const

void	fillGradientBase (const MeshEntity &ent, const RVector &w, const PosVector &x, Index nC, bool voigtNotation)

ElementMatrix< ValueType > &	gradU (const Cell &cell, Index nC, bool voigtNotation=false)

ElementMatrix< ValueType > &	gradU (const MeshEntity &ent, const RVector &w, const PosVector &x, Index nC, bool voigtNotation=false)

ElementMatrix< ValueType > &	gradU2 (const Cell &cell, const Matrix< ValueType > &C, bool voigtNotation=false)

ElementMatrix< ValueType > &	gradU2 (const Cell &cell, ValueType c)

ElementMatrix< ValueType > &	gradU2 (const MeshEntity &ent, const Matrix< ValueType > &C, const RVector &w, const PosVector &x, bool voigtNotation=false)

ElementMatrix< ValueType > &	ux2uy2uz2 (const Cell &cell, bool useCache=false)

ElementMatrix< ValueType > &	u (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose=false)

ElementMatrix< ValueType > &	u2 (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose=false)

ElementMatrix< ValueType > &	ux2 (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose=false)

ElementMatrix< ValueType > &	ux2uy2 (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose=false)

ElementMatrix< ValueType > &	ux2uy2uz2 (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose=false)

ElementMatrix< double > &	dudi (const MeshEntity &ent, const RVector &w, const PosVector &x, Index i, bool verbose=false)

ElementMatrix< double > &	ux (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose=false)

ElementMatrix< double > &	uy (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose=false)

ElementMatrix< double > &	uz (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose=false)

Vector< ValueType >	mult (const Vector< ValueType > &v)

void	mult (const Vector< ValueType > &a, Vector< ValueType > &ret)

ValueType	mult (const Vector< ValueType > &a, const Vector< ValueType > &b)

template<class Val >
Val	mult_ (const Vector< Val > &a, const Vector< Val > &b, const Vector< Val > &m, const Vector< Val > &n)

double	mult (const RVector &a, const RVector &b, const RVector &m, const RVector &n)

Complex	mult (const CVector &a, const CVector &b, const CVector &m, const CVector &n)

	ElementMatrix (Index nCoeff, Index dofPerCoeff, Index dofOffset)

	ElementMatrix (const ElementMatrix< ValueType > &E)

void	copyFrom (const ElementMatrix< ValueType > &E, bool withMat=true)

void	init (Index nCoeff, Index dofPerCoeff, Index dofOffset)

ElementMatrix< ValueType > &	pot (const MeshEntity &ent, Index order, bool sum, Index nCoeff, Index dof, Index dofOffset)

ElementMatrix< ValueType > &	pot (const MeshEntity &ent, Index order, bool sum=false)

ElementMatrix< ValueType > &	grad (const MeshEntity &ent, Index order, bool elastic, bool sum, bool div, Index nCoeff, Index dof, Index dofOffset, bool kelvin=false)

ElementMatrix< ValueType > &	grad (const MeshEntity &ent, Index order, bool elastic=false, bool sum=false, bool div=false, bool kelvin=false)

void	integrate () const

const std::vector< Matrix< ValueType > > &	matX () const

std::vector< Matrix< ValueType > > *	pMatX ()

const MeshEntity &	entity () const

const PosVector &	x () const

const RVector &	w () const

Index	order () const

Index	nCoeff () const

Index	dofPerCoeff () const

Index	dofOffset () const

void	setDiv (bool div)

bool	isDiv () const

bool	isIntegrated () const

void	integrated (bool i)

bool	valid () const

void	setValid (bool v)

bool	elastic () const

bool	oldStyle () const

DLLEXPORT ElementMatrix< double > &	u (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose)

DLLEXPORT ElementMatrix< double > &	u2 (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose)

DLLEXPORT ElementMatrix< double > &	dudi (const MeshEntity &ent, const RVector &w, const PosVector &x, Index dim, bool verbose)

DLLEXPORT ElementMatrix< double > &	ux2 (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose)

ElementMatrix< double > &DLLEXPORT	ux2uy2 (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose)

DLLEXPORT ElementMatrix< double > &	ux2uy2uz2 (const MeshEntity &ent, const RVector &w, const PosVector &x, bool verbose)

DLLEXPORT void	fillGradientBase (const MeshEntity &ent, const RVector &w, const PosVector &x, Index nC, bool voigtNotation)

DLLEXPORT ElementMatrix< double > &	gradU (const MeshEntity &ent, const RVector &w, const PosVector &x, Index nC, bool voigtNotation)

DLLEXPORT ElementMatrix< double > &	gradU (const Cell &cell, Index nC, bool voigtNotation)

DLLEXPORT RVector	stress (const MeshEntity &ent, const RMatrix &C, const RVector &u, bool voigtNotation)

DLLEXPORT ElementMatrix< double > &	gradU2 (const MeshEntity &ent, const Matrix< double > &C, const RVector &w, const PosVector &x, bool voigtNotation)

DLLEXPORT ElementMatrix< double > &	gradU2 (const Cell &cell, const Matrix< double > &C, bool voigtNotation)

DLLEXPORT ElementMatrix< double > &	u (const MeshEntity &ent)

DLLEXPORT ElementMatrix< double > &	u2 (const MeshEntity &ent)

DLLEXPORT ElementMatrix< double > &	ux2uy2uz2 (const Cell &cell, bool useCache)

DLLEXPORT	ElementMatrix (Index nCoeff, Index dofPerCoeff, Index dofOffset)

DLLEXPORT	ElementMatrix (const ElementMatrix< double > &E)

DLLEXPORT void	init (Index nCoeff, Index dofPerCoeff, Index dofOffset)

DLLEXPORT void	copyFrom (const ElementMatrix< double > &E, bool withMat)

DLLEXPORT void	integrate () const

DLLEXPORT ElementMatrix< double > &	pot (const MeshEntity &ent, Index order, bool sum)

DLLEXPORT ElementMatrix< double > &	pot (const MeshEntity &ent, Index order, bool sum, Index nCoeff, Index dof, Index dofOffset)

DLLEXPORT ElementMatrix< double > &	grad (const MeshEntity &ent, Index order, bool elastic, bool sum, bool div, bool kelvin)

DLLEXPORT ElementMatrix< double > &	grad (const MeshEntity &ent, Index order, bool elastic, bool sum, bool div, Index nCoeff, Index dof, Index dofOffset, bool kelvin)

DLLEXPORT void	copyFrom (const ElementMatrix< double > &E, bool withMat)

DLLEXPORT void	init (Index nCoeff, Index dofPerCoeff, Index dofOffset)

Protected Attributes
Matrix< ValueType >	mat_

IndexArray	_ids

IndexArray	_idsC

IndexArray	_idsR

std::map< uint, RVector >	uCache_

std::map< uint, Matrix< ValueType > >	u2Cache_

std::vector< Matrix< ValueType > >	_B

Matrix< ValueType >	_grad

Index	_nDof

RMatrix	dNdr_

RMatrix	dNds_

RMatrix	dNdt_

RMatrix	dNdx_

RMatrix	dNdy_

RMatrix	dNdz_

RMatrix	_abaTmp

Index	_order

Index	_nCoeff

Index	_dofPerCoeff

Index	_dofOffset

const MeshEntity *	_ent

const RVector *	_w

const PosVector *	_x

std::vector< Matrix< ValueType > >	_matX

bool	_newStyle

bool	_div

bool	_valid

bool	_elastic

bool	_integrated

Constructor & Destructor Documentation

◆ ElementMatrix()

template<class ValueType >

GIMLI::ElementMatrix< ValueType >::ElementMatrix ( Index dof = 0 )

inline

If dof != 0 then scalar field approximation is to be supposed. For vector field solution give a dof, means be the number of nodes of the current mesh.

Member Function Documentation

◆ col()

template<class ValueType >

Vector< ValueType > GIMLI::ElementMatrix< ValueType >::col ( Index i ) const

inline

Return data for col i.

Referenced by GIMLI::Vector< ValueType >::add().

◆ colIDs()

template<class ValueType >

const IndexArray& GIMLI::ElementMatrix< ValueType >::colIDs ( ) const

inline

Return all column node indices.

◆ entity()

template<class ValueType >

const MeshEntity& GIMLI::ElementMatrix< ValueType >::entity ( ) const

inline

Return const reference to the last active entity.

◆ fillGradientBase()

template<class ValueType >

void GIMLI::ElementMatrix< ValueType >::fillGradientBase	(	const MeshEntity &	ent,
		const RVector &	w,
		const PosVector &	x,
		Index	nC,
		bool	voigtNotation
	)

Fill Element Gradients Matrix for all integration points.

◆ fillIds()

template<class ValueType >

template void GIMLI::ElementMatrix< ValueType >::fillIds	(	const MeshEntity &	ent,
		Index	nC = `1`
	)

Fill the node ids with a number of coefficents. For vector field approximation give field dimension 2 or 3. Please note that you need to give the number of nodes to the ElementMatrix constructor.

◆ getWeightsAndPoints()

template<class ValueType >

template void GIMLI::ElementMatrix< ValueType >::getWeightsAndPoints	(	const MeshEntity &	ent,
		const RVector *&	w,
		const PosVector *&	x,
		int	order
	)

Get integration weights and points for the entity.

References GIMLI::Singleton< IntegrationRules >::instance(), and GIMLI::x().

◆ grad() [1/2]

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::grad	(	const MeshEntity &	ent,
		Index	order,
		bool	elastic,
		bool	sum,
		bool	div,
		Index	nCoeff,
		Index	dof,
		Index	dofOffset,
		bool	kelvin = `false`
	)

Fill this ElementMatrix with value (u for scalar, v for vector values) basis. Cache the matrix in entity

◆ grad() [2/2]

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::grad	(	const MeshEntity &	ent,
		Index	order,
		bool	elastic = `false`,
		bool	sum = `false`,
		bool	div = `false`,
		bool	kelvin = `false`
	)

Fill this ElementMatrix with gradient of ent.

◆ gradientBase()

template<class ValueType >

const Matrix< ValueType >& GIMLI::ElementMatrix< ValueType >::gradientBase ( ) const

inline

Return gradient base for the last entity, i.e., integrate over gradient u over the cell.

◆ gradU() [1/2]

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::gradU	(	const Cell &	cell,
		Index	nC,
		bool	voigtNotation = `false`
	)

Fill this element matrix with int_domain C * grad u

◆ gradU() [2/2]

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::gradU	(	const MeshEntity &	ent,
		const RVector &	w,
		const PosVector &	x,
		Index	nC,
		bool	voigtNotation = `false`
	)

Fill this element matrix with int_domain C * grad u

◆ gradU2() [1/3]

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::gradU2	(	const Cell &	cell,
		const Matrix< ValueType > &	C,
		bool	voigtNotation = `false`
	)

Fill this element matrix with int_domain C * grad u * grad u. For scalar field approximation define C.size() = (1x1) isotropic or anisotropic C.size() = (cell.dim() x cell.dim()) parameter. For vector field approximation create the ElementMatrix with appropriate dof and C can be of size = (1x1) for isotropic, (cell.dim() x cell.dim()) for anisotropic, or (3x3) for 2D elastic and (6x6) 3D elastic parameter. Notation for elastic parameters Kelvin notation as default and can be Voigt's notation if needed.

◆ gradU2() [2/3]

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::gradU2	(	const Cell &	cell,
		ValueType	c
	)

inline

Fill this element matrix with int_domain C * grad u * grad u.

◆ gradU2() [3/3]

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::gradU2	(	const MeshEntity &	ent,
		const Matrix< ValueType > &	C,
		const RVector &	w,
		const PosVector &	x,
		bool	voigtNotation = `false`
	)

Fill this element matrix with int_domain C * grad u * grad u.

◆ ids()

template<class ValueType >

const IndexArray& GIMLI::ElementMatrix< ValueType >::ids ( ) const

inline

Return all node indices.

Referenced by GIMLI::Vector< ValueType >::add().

◆ idx()

template<class ValueType >

const Index GIMLI::ElementMatrix< ValueType >::idx ( Index i ) const

inline

Return the node index for node i.

Referenced by GIMLI::CreateSensitivityColMT< ValueType >::calc1().

◆ integrate()

template<class ValueType >

void GIMLI::ElementMatrix< ValueType >::integrate ( ) const

Integrate, i.e., sum over quadrature matrices.

Referenced by GIMLI::Vector< ValueType >::add(), and GIMLI::mult().

◆ mat()

template<class ValueType >

const Matrix< ValueType >& GIMLI::ElementMatrix< ValueType >::mat ( ) const

inline

Return data for row i.

◆ matX()

template<class ValueType >

const std::vector< Matrix < ValueType > >& GIMLI::ElementMatrix< ValueType >::matX ( ) const

inline

Return reference to all matrices per quadrature point.

Referenced by GIMLI::mult().

◆ mult() [1/2]

template<class ValueType >

ValueType GIMLI::ElementMatrix< ValueType >::mult	(	const Vector< ValueType > &	a,
		const Vector< ValueType > &	b
	)

inline

Return (S * a) * b

◆ mult() [2/2]

template<class ValueType >

void GIMLI::ElementMatrix< ValueType >::mult	(	const Vector< ValueType > &	a,
		Vector< ValueType > &	ret
	)

inline

Return S * a

◆ mult_()

template<class ValueType >

template<class Val >

Val GIMLI::ElementMatrix< ValueType >::mult_	(	const Vector< Val > &	a,
		const Vector< Val > &	b,
		const Vector< Val > &	m,
		const Vector< Val > &	n
	)

inline

Return (S * (a-b)) * (m-n) TODO Check if its the same like mult(a-b, m-n)

◆ pMat()

template<class ValueType >

Matrix< ValueType >* GIMLI::ElementMatrix< ValueType >::pMat ( )

inline

Return data matrix.

◆ pot() [1/2]

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::pot	(	const MeshEntity &	ent,
		Index	order,
		bool	sum,
		Index	nCoeff,
		Index	dof,
		Index	dofOffset
	)

Fill this ElementMatrix with value (u for scalar, v for vector values) basis. Cache the matrix in entity

◆ pot() [2/2]

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::pot	(	const MeshEntity &	ent,
		Index	order,
		bool	sum = `false`
	)

Fill this ElementMatrix with value (u for scalar, v for vector values) basis.

◆ row()

template<class ValueType >

const Vector< ValueType >& GIMLI::ElementMatrix< ValueType >::row ( Index i ) const

inline

Return data for row i.

Referenced by GIMLI::Vector< ValueType >::add().

◆ rowIDs()

template<class ValueType >

const IndexArray& GIMLI::ElementMatrix< ValueType >::rowIDs ( ) const

inline

Return all row node indices.

Referenced by GIMLI::Vector< ValueType >::add().

◆ setIds() [1/2]

template<class ValueType >

void GIMLI::ElementMatrix< ValueType >::setIds ( const IndexArray & ids )

inline

Set all node indices.

◆ setIds() [2/2]

template<class ValueType >

void GIMLI::ElementMatrix< ValueType >::setIds	(	const IndexArray &	idsR,
		const IndexArray &	idsC
	)

inline

Set all node indices for row and columns. Can be unsymmetric.

◆ setMat()

template<class ValueType >

void GIMLI::ElementMatrix< ValueType >::setMat ( const Matrix< ValueType > & m )

inline

Set data matrix.

◆ stress()

template<class ValueType >

Vector< ValueType > GIMLI::ElementMatrix< ValueType >::stress	(	const MeshEntity &	ent,
		const Matrix< ValueType > &	C,
		const RVector &	u,
		bool	voigtNotation = `false`
	)

Return the stress matrix for this entity.

◆ u()

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::u ( const MeshEntity & ent )

Fill this element matrix with int_boundary C * u

◆ u2()

template<class ValueType >

ElementMatrix< ValueType >& GIMLI::ElementMatrix< ValueType >::u2 ( const MeshEntity & ent )

Fill this element matrix with int_domain C * u * u

◆ w()

template<class ValueType >

const RVector& GIMLI::ElementMatrix< ValueType >::w ( ) const

inline

Return const reference to the last quadrature weights.

◆ x()

template<class ValueType >

const PosVector& GIMLI::ElementMatrix< ValueType >::x ( ) const

inline

Return const reference to the last quadrature points.

Referenced by GIMLI::mult().

Public Member Functions

Protected Attributes

Constructor & Destructor Documentation

◆ ElementMatrix()

Member Function Documentation

◆ col()

◆ colIDs()

◆ entity()

◆ fillGradientBase()

◆ fillIds()

◆ getWeightsAndPoints()

◆ grad() [1/2]

◆ grad() [2/2]

◆ gradientBase()

◆ gradU() [1/2]

◆ gradU() [2/2]

◆ gradU2() [1/3]

◆ gradU2() [2/3]

◆ gradU2() [3/3]

◆ ids()

◆ idx()

◆ integrate()

◆ mat()

◆ matX()

◆ mult() [1/2]

◆ mult() [2/2]

◆ mult_()

◆ pMat()

◆ pot() [1/2]

◆ pot() [2/2]

◆ row()

◆ rowIDs()

◆ setIds() [1/2]

◆ setIds() [2/2]

◆ setMat()

◆ stress()

◆ u()

◆ u2()

◆ w()

◆ x()
