GIMLI::RInversion Class Reference
+ Inheritance diagram for GIMLI::RInversion:

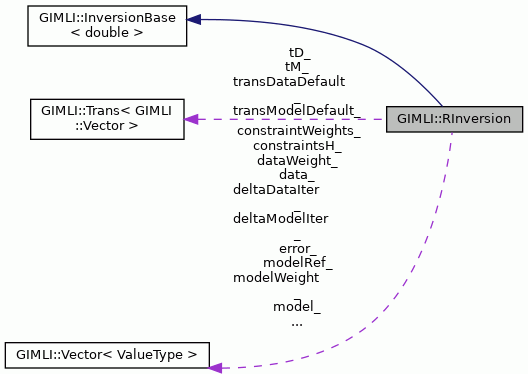

+ Collaboration diagram for GIMLI::RInversion:

Public Types

typedef RVector Vec

typedef RVector ModelVector

- Public Types inherited from GIMLI::InversionBase< double >
typedef Vector< double > ModelVector


Public Member Functions

 RInversion (bool verbose=false, bool dosave=false)

 RInversion (ModellingBase &forward, bool verbose=false, bool dosave=false)

 RInversion (const Vec &data, ModellingBase &forward, bool verbose=false, bool dosave=false)

 RInversion (const Vec &data, ModellingBase &forward, Trans< Vec > &transData, bool verbose=true, bool dosave=false)

 RInversion (const Vec &data, ModellingBase &forward, Trans< Vec > &transData, Trans< Vec > &transModel, bool verbose=true, bool dosave=false)

virtual ~RInversion ()

void setData (const Vec &data)

const Vecdata () const

void setRelativeError (const Vec &e)

void setRelativeError (double relerr)

void setAbsoluteError (const Vec &abserr)

void setAbsoluteError (double abserr)

void setError (const Vec &err, bool isRelative=true)

void setError (double err, bool isRelative=true)

const Vecerror () const

void checkError ()

Vec errorDefault_ ()

void setForwardOperator (ModellingBase &forward)

ModellingBaseforwardOperator ()

ModellingBasefop ()

void setTransData (Trans< Vec > &tD)

Trans< Vec > & transData ()

void setTransModel (Trans< Vec > &tM)

Trans< Vec > & transModel ()

uint constraintsCount () const

uint dataCount () const

void setVerbose (bool verbose)

bool verbose () const

void setDoSave (bool d)

bool doSave () const

void saveModelHistory (bool doSaveModelHistory)

void setLineSearch (bool linesearch)

bool lineSearch () const

void setBlockyModel (bool isBlocky)

bool blockyModel () const

void setRobustData (bool isRobust)

bool robustData () const

void setLambda (double lambda)

double lambda () const

double getLambda () const

void setLambdaFactor (double lambdaFactor)

double lambdaFactor () const

void setLambdaMinimum (double l)

double lambdaMinimum () const

void setLocalRegularization (bool localReg)

bool localRegularization () const

void setOptimizeLambda (bool opt)

bool optimizeLambda () const

void setMaxIter (int maxiter)

int maxIter () const

void setMaxCGLSIter (int iter)

int maxCGLSIter () const

void setCGLSTolerance (double tol)

double maxCGLSTolerance () const

uint iter () const

bool isRunning () const

void abort ()

void stopAtChi1 (bool stopAtChi1)

void setDeltaPhiAbortPercent (double dPhi)

double deltaPhiAbortPercent () const

void setMarquardtScheme (double lambdaFactor=0.8)

void checkTransFunctions ()

void setRecalcJacobian (bool recalc)

bool recalcJacobian () const

void setBroydenUpdate (bool broydenUpdate)

bool broydenUpdate () const

void setModel (const Vec &model)

const ModelVectormodel () const

void setReferenceModel (const Vec &model)

void setResponse (const Vec &response)

void setConstraintsH (const Vec &constraintsH)

const Vecresponse () const

Vec getIRLS () const

void setCWeight (const Vec &cWeight)

const VeccWeight () const

void setMWeight (const Vec &mweight)

const VecmWeight () const

void robustWeighting ()

void constrainBlocky ()

void checkConstraints ()

void checkJacobian (bool force=false)

void echoStatus () const

void echoStatus (const Vec &response, const Vec &model, const std::string &xtra="") const

Vec modelCellResolution (int iModel)

Vec modelCellResolution (const RVector3 &pos)

RMatrix modelResolutionMatrix ()

RVector roughness (const RVector &model) const

RVector roughness () const

RVector pureRoughness (const RVector &model) const

double getPhiD (const Vec &response) const

double getPhiM (const Vec &model) const

double getPhi (const Vec &model, const Vec &response) const

double getPhiD () const

double getPhiM () const

double getPhi () const

double getChi2 () const

double getChi2 (const Vec &response) const

double chi2 () const

double absrms () const

double relrms () const

double linesearch (const Vec &modelNew, const Vec &responseNew) const

double linesearchQuad (const Vec &modelNew, const Vec &responseNew, const Vec &modelQuad, const Vec &responseQuad, double tauquad) const

const std::vector< RVector > & modelHistory () const

Vec invSubStep (const Vec &rhs)

Vec optLambda (const Vec &deltaData, const Vec &deltaModel0)

bool oneStep ()
 !! h-variante More...

const Vecinvert (const Vec &data)

const Vecstart ()

const Vecrun ()

Vec runChi1 (double acc=0.01, int maxiter=50)

const RVectormodelWeight () const

const RVectormodelRef () const

const RVectordataWeight () const

const RVectordeltaDataIter () const

const RVectordeltaModelIter () const

void reset ()

- Public Member Functions inherited from GIMLI::InversionBase< double >
 InversionBase ()

virtual ~InversionBase ()

virtual const ModelVectormodel () const=0

virtual const ModelVectorcWeight () const=0

virtual uint iter () const=0

virtual double chi2 () const=0

virtual bool isRunning () const=0


Protected Member Functions

void init_ ()


Protected Attributes

Vec data_

ModellingBaseforward_

Trans< Vec > * tD_

Trans< Vec > * tM_

Trans< Vec > * transModelDefault_

Trans< Vec > * transDataDefault_

bool verbose_

bool dosave_

bool saveModelHistory_

Vec error_

Vec response_

Vec model_

Vec modelRef_

Vec constraintsH_

Vec constraintWeights_

Vec modelWeight_

Vec dataWeight_

Vec deltaDataIter_

Vec deltaModelIter_

int maxiter_

int iter_

int maxCGLSIter_

double lambda_

double lambdaFactor_

double lambdaMin_

double dPhiAbortPercent_

double CGLStol_

bool isBlocky_

bool isRobust_

bool isRunning_

bool useLinesearch_

bool optimizeLambda_

bool abort_

bool stopAtChi1_

bool doBroydenUpdate_

bool localRegularization_

bool haveReferenceModel_

bool recalcJacobian_

bool jacobiNeedRecalc_

bool activateFillConstraintWeights_

bool fixError_

std::vector< RVectormodelHist_


Detailed Description

Inversion template using a Generalized Minimization Approach, atm fixed to Gauss-Newton solver Inversion(bool verbose, bool dosave Inversion(RVector data, FOP f, bool verbose, bool dosave Inversion(RVector data, FOP f, transData, transModel, bool verbose, bool dosave

Constructor & Destructor Documentation

◆ RInversion() [1/5]

GIMLI::RInversion::RInversion ( bool  verbose = false,
bool  dosave = false
)
inline

Minimal constructor. verbose – gives some output and status information about the inversion progress; dosave – advanced debuging, saves alot of stuff and temporary data

◆ RInversion() [2/5]

GIMLI::RInversion::RInversion ( ModellingBase forward,
bool  verbose = false,
bool  dosave = false
)
inline

Contructor for forward operator only

◆ RInversion() [3/5]

GIMLI::RInversion::RInversion ( const Vec data,
ModellingBase forward,
bool  verbose = false,
bool  dosave = false
)
inline

Usual constructor. data – vector of the given data; forward – the associated forward operator

◆ RInversion() [4/5]

GIMLI::RInversion::RInversion ( const Vec data,
ModellingBase forward,
Trans< Vec > &  transData,
bool  verbose = true,
bool  dosave = false
)
inline

Intermediate constructor including transforms and data transformation function

◆ RInversion() [5/5]

GIMLI::RInversion::RInversion ( const Vec data,
ModellingBase forward,
Trans< Vec > &  transData,
Trans< Vec > &  transModel,
bool  verbose = true,
bool  dosave = false
)
inline

Full constructor including transforms. transData – data transformation function; transModel – model transformation function

◆ ~RInversion()

virtual GIMLI::RInversion::~RInversion ( )
inlinevirtual

Destructor. Frees allocated memory

Member Function Documentation

◆ abort()

void GIMLI::RInversion::abort ( )
inlinevirtual

Force abort at next iteration

Implements GIMLI::InversionBase< double >.

◆ absrms()

double GIMLI::RInversion::absrms ( ) const
inline

Return last absolute RMS misfit

◆ checkConstraints()

void GIMLI::RInversion::checkConstraints ( )

Create constraints, check and compare size of constraint matrix with model/boundary control

References GIMLI::Vector< ValueType >::resize().

◆ checkError()

void GIMLI::RInversion::checkError ( )
inline

Validate the data error. This check will be called at every new run or change of the error; Check size and content unequal to zero. If problems found, warn and set the data error to errorDefault_()

◆ checkJacobian()

void GIMLI::RInversion::checkJacobian ( bool  force = false)

Check size of Jacobian matrix against data and model number

◆ checkTransFunctions()

void GIMLI::RInversion::checkTransFunctions ( )
inline

Check if transfunctions are valid, set default if no transfunctions are given or override given functions by regionManager.transfunctions if available

◆ chi2()

double GIMLI::RInversion::chi2 ( ) const
inline

Return last chi-squared data misfit

◆ constrainBlocky()

void GIMLI::RInversion::constrainBlocky ( )
inline

Apply blocky model constraints (see also setBlockyModel)

◆ constraintsCount()

uint GIMLI::RInversion::constraintsCount ( ) const
inline

Return number of constraints

◆ cWeight()

const Vec& GIMLI::RInversion::cWeight ( ) const
inline

Return reference to the current constraints weight vector

◆ data()

const Vec& GIMLI::RInversion::data ( ) const
inline

Get data vector

◆ dataCount()

uint GIMLI::RInversion::dataCount ( ) const
inline

Return number of data

◆ echoStatus() [1/2]

void GIMLI::RInversion::echoStatus ( ) const
inline

Shortcut for echoStatus(response_, model_).

◆ echoStatus() [2/2]

void GIMLI::RInversion::echoStatus ( const Vec response,
const Vec model,
const std::string &  xtra = ""
) const
inline

Echo PhiD/PhiM/Phi and Chi^2 for given model and response

◆ error()

const Vec& GIMLI::RInversion::error ( ) const
inline

Return the used data error

◆ errorDefault_()

Vec GIMLI::RInversion::errorDefault_ ( )
inline

Return a copy of the default data error array, [ Relative data error of 1% ]

◆ fop()

ModellingBase* GIMLI::RInversion::fop ( )
inline

Return forward operator. Shortcut for forwardOperator()

◆ forwardOperator()

ModellingBase* GIMLI::RInversion::forwardOperator ( )
inlinevirtual

Return forward operator.

Implements GIMLI::InversionBase< double >.

◆ getChi2() [1/2]

double GIMLI::RInversion::getChi2 ( ) const
inline

Return the chi-squared data misfit DEPRECATED wrong nameing scheme

◆ getChi2() [2/2]

double GIMLI::RInversion::getChi2 ( const Vec response) const
inline

Return the chi-squared data misfit for given forward response. DEPRECATED wrong nameing scheme

◆ getIRLS()

Vec GIMLI::RInversion::getIRLS ( ) const
inline

Return IRLS function of roughness vector

◆ getPhi() [1/2]

double GIMLI::RInversion::getPhi ( ) const
inline

Shortcut for getPhi(model_, response_) necessary ? DEPRECATED wrong nameing scheme

◆ getPhi() [2/2]

double GIMLI::RInversion::getPhi ( const Vec model,
const Vec response
) const
inline

Return total objective function (data OF plus lambda times model OF) DEPRECATED wrong nameing scheme

◆ getPhiD() [1/2]

double GIMLI::RInversion::getPhiD ( ) const
inline

Shortcut for getPhiD(response_) necessary ? DEPRECATED wrong nameing scheme

◆ getPhiD() [2/2]

double GIMLI::RInversion::getPhiD ( const Vec response) const

Return data objective function (sum of squared data-weighted misfit)

◆ getPhiM() [1/2]

double GIMLI::RInversion::getPhiM ( ) const
inline

Shortcut for getPhiM(model_) necessary ? DEPRECATED wrong nameing scheme

◆ getPhiM() [2/2]

double GIMLI::RInversion::getPhiM ( const Vec model) const

Return model objective function (squared model roughness)

◆ init_()

void GIMLI::RInversion::init_ ( )
inlineprotected

Internal initialization function, which is called from constructor. Set default paramater and allocate required memory

◆ invert()

const RVector & GIMLI::RInversion::invert ( const Vec data)

Start the inversion with specific data.

◆ invSubStep()

Vec GIMLI::RInversion::invSubStep ( const Vec rhs)
inline

Compute model update by solving one inverse sub-step

Parameters
rhsThe right-hand-side vector of the system of equation

!! h-variante

◆ isRunning()

bool GIMLI::RInversion::isRunning ( ) const
inline

Return true if inversion is running

◆ iter()

uint GIMLI::RInversion::iter ( ) const
inline

Return curent iteration number

◆ lambdaMinimum()

double GIMLI::RInversion::lambdaMinimum ( ) const
inline

Return the minimum lambda value that can be reached if lambda factor is set.

◆ linesearch()

double GIMLI::RInversion::linesearch ( const Vec modelNew,
const Vec responseNew
) const
inline

Start with linear interpolation, followed by quadratic fit if linesearch parameter tau is lower than 0.03. Tries to return values between 0.03 and 1

rigorous minimization of the total objective function

parabolic line search using step 0, 1 and tauquad to fit parabola

too large

negative or nearly zero (stucked) -> use small step instead

only if not nearly one (which saves a forward run

◆ linesearchQuad()

double GIMLI::RInversion::linesearchQuad ( const Vec modelNew,
const Vec responseNew,
const Vec modelQuad,
const Vec responseQuad,
double  tauquad
) const
inline

Compute objective function for old (tau=0), new (tau=1) and another model

◆ localRegularization()

bool GIMLI::RInversion::localRegularization ( ) const
inline

Return whether regularization is global or local (e.g. Marquardt method)

◆ model()

const ModelVector& GIMLI::RInversion::model ( ) const
inline

Return a const reference to the current model vector

◆ modelCellResolution() [1/2]

Vec GIMLI::RInversion::modelCellResolution ( const RVector3 pos)
inline

Compute cell resolution for closest cell to given position

References GIMLI::Matrix< ValueType >::push_back().

◆ modelCellResolution() [2/2]

Vec GIMLI::RInversion::modelCellResolution ( int  iModel)
inline

Compute model cell resolution (specific column of resolution matrix) by an LSCG solver (Guenther, 2004)

◆ modelHistory()

const std::vector< RVector >& GIMLI::RInversion::modelHistory ( ) const
inline

Return the single models for each iteration. For debugging.

◆ modelResolutionMatrix()

RMatrix GIMLI::RInversion::modelResolutionMatrix ( )
inline

Compute whole resolution matrix by single cell resolutions

◆ mWeight()

const Vec& GIMLI::RInversion::mWeight ( ) const
inline

Return reference to the current model weight vector

References GIMLI::getIRLSWeights().

◆ oneStep()

bool GIMLI::RInversion::oneStep ( )

!! h-variante

One iteration step. Return true if the step can be calculated successfully else false is returned.

full step possible;

normal line search parameter between 0.03 and 0.94

** temporary stuff

References roughness().

◆ optLambda()

RVector GIMLI::RInversion::optLambda ( const Vec deltaData,
const Vec deltaModel0
)

Optimization of regularization parameter by L-curve

◆ pureRoughness()

RVector GIMLI::RInversion::pureRoughness ( const RVector model) const
inline

Return (C * m) , i.e. the pure (unweighted) roughness

◆ relrms()

double GIMLI::RInversion::relrms ( ) const
inline

Return last relative RMS misfit

◆ reset()

void GIMLI::RInversion::reset ( )
inline

Resets this inversion to the given startmodel.

◆ response()

const Vec& GIMLI::RInversion::response ( ) const
inline

Return a reference to the current response vector

◆ robustWeighting()

void GIMLI::RInversion::robustWeighting ( )
inline

Call robust date reweighting (see also setRobustData)

◆ roughness() [1/2]

RVector GIMLI::RInversion::roughness ( ) const
inline

Shortcut for roughness for the current model vector

Referenced by oneStep().

◆ roughness() [2/2]

RVector GIMLI::RInversion::roughness ( const RVector model) const
inline

Return (C * m * m_w) * c_w

◆ run()

const RVector & GIMLI::RInversion::run ( )
virtual

Start the inversion procedure from the last model and return the final model vector.

Run inversion with current model.

calculation of initial modelresponse

() clear the model history

validate and rebuild the data error if necessary

validate and rebuild the constraint matrix if necessary

compute roughness constraint and correct it for inter-region constraints

validate and rebuild the jacobian if necessary

Implements GIMLI::InversionBase< double >.

◆ runChi1()

Vec GIMLI::RInversion::runChi1 ( double  acc = 0.01,
int  maxiter = 50
)
inline

Specialized run function that tries to reach a datafit chi^2=1 by varying the regularization paramater lambda

◆ saveModelHistory()

void GIMLI::RInversion::saveModelHistory ( bool  doSaveModelHistory)
inline

Set and get verbose behaviour

◆ setAbsoluteError() [1/2]

void GIMLI::RInversion::setAbsoluteError ( const Vec abserr)
inline

Set the absolute data error to the vector abserr

◆ setAbsoluteError() [2/2]

void GIMLI::RInversion::setAbsoluteError ( double  abserr)
inline

Set absolute data error to the scalar value abserr

◆ setBlockyModel()

void GIMLI::RInversion::setBlockyModel ( bool  isBlocky)
inline

Set and get blocky model behaviour (by L1 reweighting of constraints)

◆ setBroydenUpdate()

void GIMLI::RInversion::setBroydenUpdate ( bool  broydenUpdate)
inline

Enable/disable broyden update (which enforces scaling by transform function derivatives

◆ setCGLSTolerance()

void GIMLI::RInversion::setCGLSTolerance ( double  tol)
inline

Set and get abort tolerance for cgls solver. -1 means default scaling [default]

◆ setConstraintsH()

void GIMLI::RInversion::setConstraintsH ( const Vec constraintsH)
inline

Set constraint right-hand side by hand (very special cases, so be careful)

◆ setCWeight()

void GIMLI::RInversion::setCWeight ( const Vec cWeight)
inline

Set the constraint weight (boundary control) vector

◆ setData()

void GIMLI::RInversion::setData ( const Vec data)
inlinevirtual

Set data vector

Implements GIMLI::InversionBase< double >.

◆ setDeltaPhiAbortPercent()

void GIMLI::RInversion::setDeltaPhiAbortPercent ( double  dPhi)
inline

Set and get relative objective function decrease

◆ setDoSave()

void GIMLI::RInversion::setDoSave ( bool  d)
inline

Set debug output

◆ setForwardOperator()

void GIMLI::RInversion::setForwardOperator ( ModellingBase forward)
inlinevirtual

Set the forward operator and the model-transform-function derived from fop-regionManager if not set before.

why is this so strictly necessary???

Always use a region manager

Implements GIMLI::InversionBase< double >.

◆ setLambda()

void GIMLI::RInversion::setLambda ( double  lambda)
inlinevirtual

Set and get regularization parameter and its change over iteration

Implements GIMLI::InversionBase< double >.

◆ setLambdaMinimum()

void GIMLI::RInversion::setLambdaMinimum ( double  l)
inline

Set the minimum lambda value that can be reached if lambda factor is set. Default is 1.

◆ setLineSearch()

void GIMLI::RInversion::setLineSearch ( bool  linesearch)
inline

Set and get line search

◆ setLocalRegularization()

void GIMLI::RInversion::setLocalRegularization ( bool  localReg)
inline

Set whether regularization is global or local (e.g. Marquardt method)

◆ setMarquardtScheme()

void GIMLI::RInversion::setMarquardtScheme ( double  lambdaFactor = 0.8)
inline

Marquardt scheme (local damping with decreasing regularization strength

no contribution of regularization to objective function

lambda is decreased towards zero

let the solution fully converge (important for statistics)

◆ setMaxCGLSIter()

void GIMLI::RInversion::setMaxCGLSIter ( int  iter)
inline

Set and get maximum iteration number for inverse sub step

◆ setMaxIter()

void GIMLI::RInversion::setMaxIter ( int  maxiter)
inlinevirtual

Set and get maximum iteration number

Implements GIMLI::InversionBase< double >.

◆ setModel()

void GIMLI::RInversion::setModel ( const Vec model)
inlinevirtual

Set model vector . If you call run() the inversion starts with this model, otherwise it will start with fop.startModel().

Implements GIMLI::InversionBase< double >.

◆ setMWeight()

void GIMLI::RInversion::setMWeight ( const Vec mweight)
inline

Set the model weight vector

◆ setOptimizeLambda()

void GIMLI::RInversion::setOptimizeLambda ( bool  opt)
inline

Set and get whether lambda is being optimized by Lcurve

◆ setRecalcJacobian()

void GIMLI::RInversion::setRecalcJacobian ( bool  recalc)
inline

Define and find out whether Jacobian is recalculated in each iteration

◆ setReferenceModel()

void GIMLI::RInversion::setReferenceModel ( const Vec model)
inlinevirtual

Set reference model vector

Implements GIMLI::InversionBase< double >.

References GIMLI::getIRLSWeights().

◆ setRelativeError() [1/2]

void GIMLI::RInversion::setRelativeError ( const Vec e)
inline

Set the relative data error to the vector err.

◆ setRelativeError() [2/2]

void GIMLI::RInversion::setRelativeError ( double  relerr)
inline

Set relative data error to scalar error value relerr. If you force relerr == 0 here. Data will not corrected or weighted.

◆ setResponse()

void GIMLI::RInversion::setResponse ( const Vec response)
inline

Set current model response (e.g. to avoid time-consuming forward calculation, but be careful)

◆ setRobustData()

void GIMLI::RInversion::setRobustData ( bool  isRobust)
inline

Set and get robust data weighting by L1 reweighting scheme

◆ setTransData()

void GIMLI::RInversion::setTransData ( Trans< Vec > &  tD)
inlinevirtual

Set and get data transform. WARNING! we just store a reference to the trans .. U have to ensure that the trans is and stayes valid. TODO change this!!!

Implements GIMLI::InversionBase< double >.

◆ setTransModel()

void GIMLI::RInversion::setTransModel ( Trans< Vec > &  tM)
inlinevirtual

Set and get Model transform WARNING! we just store a reference to the trans .. U have to ensure that the trans is and stayes valid. TODO change this!!!

Implements GIMLI::InversionBase< double >.

◆ setVerbose()

void GIMLI::RInversion::setVerbose ( bool  verbose)
inline

Set verbose output

◆ start()

const RVector & GIMLI::RInversion::start ( )

Start the inversion procedure from starting model.

Start inversion from starting model.

◆ stopAtChi1()

void GIMLI::RInversion::stopAtChi1 ( bool  stopAtChi1)
inline

Define whether minimization stops at chi^2=1

Member Data Documentation

◆ fixError_

bool GIMLI::RInversion::fixError_
protected

Set this to zero if u want to use absolute errors == zero

◆ modelHist_

std::vector< RVector > GIMLI::RInversion::modelHist_
protected

Hold old models, for debuging
