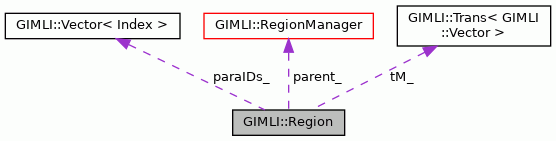

Collaboration diagram for GIMLI::Region:

Public Member Functions
	Region (SIndex marker, RegionManager *parent, bool single=false)

	Region (SIndex marker, const Mesh &mesh, RegionManager *parent)

	Region (SIndex marker, const Mesh &mesh, SIndex cellMarker, RegionManager *parent)

	Region (const Region &region)

Region &	operator= (const Region &region)

void	setMarker (SIndex marker)

SIndex	marker () const

void	resize (const Mesh &mesh, SIndex cellMarker)

void	resize (const std::vector< Cell * > &cells)

void	markBackground (bool background)

void	setBackground (bool background=true)

bool	isBackground () const

void	markSingle (bool issingle)

void	setSingle (bool background=true)

bool	isSingle () const

bool	isInParaDomain () const

Index	parameterCount () const

Index	startParameter () const

Index	endParameter () const

void	setConstraintType (Index type)

Index	constraintType () const

Index	constraintCount () const

void	fillConstraints (RSparseMapMatrix &C, Index startConstraintsID)

void	setConstraintWeights (double bc)

void	setConstraintWeights (const RVector &cw)

const RVector &	constraintWeights ()

void	fillConstraintWeights (RVector &vec, Index constraintStart)

void	_createConstraintWeights ()

void	setZWeight (double zw)

double	zWeight () const

void	setFixValue (double val)

double	fixValue () const

void	fillBoundaryNorm (std::vector< RVector3 > &vnorm, Index boundCount)

void	fillBoundarySize (RVector &vec, Index boundStart)

void	fillStartModel (RVector &vec)

void	fillModelControl (RVector &vec)

const std::vector< Boundary * > &	boundaries () const

const std::vector< Cell * > &	cells () const

std::vector< Cell * > &	cells ()

void	countParameter (Index start)

bool	isPermuted () const

void	permuteParameterMarker (const IndexArray &p)

const IndexArray &	paraIds () const

void	setStartModel (const RVector &start)

void	setStartModel (double start)

Trans< RVector > *	transModel ()

void	setLowerBound (double lb)

void	setUpperBound (double ub)

void	setParameters (double start, double lb, double ub, std::string transString="")

void	setModelTransStr_ (const std::string &val)

void	setModelControlStr_ (const std::string &val)

void	setStartModelStr_ (const std::string &val)

void	setZWeightStr_ (const std::string &val)

void	setFixValueStr_ (const std::string &val)

void	setConstraintTypeStr_ (const std::string &val)

void	setLowerBoundStr_ (const std::string &val)

void	setUpperBoundStr_ (const std::string &val)

void	setSingleStr_ (const std::string &val)

void	setBackgroundStr_ (const std::string &val)

Protected Member Functions
void	init_ ()

void	copy_ (const Region &region)

Protected Attributes
SIndex	marker_

RegionManager *	parent_

std::vector< Cell * >	cells_

std::vector< Boundary * >	bounds_

bool	isBackground_

bool	isSingle_

bool	isPermuted_

bool	_isInParaDomain

IndexArray	paraIDs_

Index	parameterCount_

Index	startParameter_

Index	endParameter_

Index	constraintType_

RVector	startModel_

double	modelControl_

RVector	constraintWeights_

double	zWeight_

double	fixValue_

double	mcDefault_

double	startDefault_

double	lowerBound_

double	upperBound_

Trans< RVector > *	tM_

bool	ownsTrans_

std::string	transString_

Member Function Documentation

◆ _createConstraintWeights()

void GIMLI::Region::_createConstraintWeights ( )

Helper method that convert cWeight parameter into individual constraintsWeights depending on the associated boundary norm. At the moment only zWeight is considered.

z-component

rather linear for bigger angles

◆ boundaries()

const std::vector< Boundary * >& GIMLI::Region::boundaries ( ) const

inline

Returns read_only acccess to the boundaries of this region

◆ constraintCount()

Index GIMLI::Region::constraintCount ( ) const

Returns number of constraints defined for this region, For single region return 1,
for constraintstype == 0 return amount of parameter cells,
else return amount of inner boundaries

◆ constraintType()

Index GIMLI::Region::constraintType ( ) const

inline

Return constraint type for this region.

◆ constraintWeights()

const RVector & GIMLI::Region::constraintWeights ( )

Return constraint weights as RVector (default RVector(constraintCount, 1.0)

◆ endParameter()

Index GIMLI::Region::endParameter ( ) const

inline

Return the last parameter id by means of a global count, defined in countParameter called from RegionManager

◆ fillConstraints()

void GIMLI::Region::fillConstraints	(	RSparseMapMatrix &	C,
		Index	startConstraintsID
	)

Fill given constraints matrix with local constraints. For single region (startConstraintsID, startParameter_) = 1,
for constraintstype == 0 fill (startConstraintsID + i, startParameter_ + i) = 1, i=1..constraintCount()
else fill (startConstraintsID + i, Boundary_i_leftNeightbourParameterID) = 1, (startConstraintsID + i, Boundary_i_rightNeightbourParameterID) = -1, i = 1..nBoundaries.

◆ fillConstraintWeights()

void GIMLI::Region::fillConstraintWeights	(	RVector &	vec,
		Index	constraintStart
	)

Fill global constraints weight vector started at constraintStart.

◆ isBackground()

bool GIMLI::Region::isBackground ( ) const

inline

Return true if this region is a parameter region

◆ isInParaDomain()

bool GIMLI::Region::isInParaDomain ( ) const

inline

Return true if the cells of this region are part of the primary paradomain.

◆ isPermuted()

bool GIMLI::Region::isPermuted ( ) const

inline

Are the parameter indecies are ascending or permuted.

◆ isSingle()

bool GIMLI::Region::isSingle ( ) const

inline

Return true if this region is a single parameter region

◆ markBackground()

void GIMLI::Region::markBackground ( bool background )

inline

Mark this region to be a background region, need RegionManger::recount

◆ marker()

SIndex GIMLI::Region::marker ( ) const

inline

Return the region marker id.

◆ markSingle()

void GIMLI::Region::markSingle ( bool issingle )

inline

Mark this region to be a single parameter region, need RegionManger::recount

◆ paraIds()

const IndexArray& GIMLI::Region::paraIds ( ) const

inline

Return all parameter indices of this region.

◆ parameterCount()

Index GIMLI::Region::parameterCount ( ) const

inline

Return number of parameters for this region, 1 on single region

◆ permuteParameterMarker()

void GIMLI::Region::permuteParameterMarker ( const IndexArray & p )

Permute parameter indecies.

◆ resize() [1/2]

void GIMLI::Region::resize	(	const Mesh &	mesh,
		SIndex	cellMarker
	)

Set new parameter cells, i.e. update the related mesh and all sizes.

References GIMLI::Boundary::leftCell().

Referenced by GIMLI::RegionManager::createSingleRegion_().

◆ resize() [2/2]

void GIMLI::Region::resize ( const std::vector< Cell * > & cells )

Set new parameter cells, i.e. update the related mesh and all sizes. Only for single region.

◆ setBackground()

void GIMLI::Region::setBackground ( bool background = true )

Set this region to be a background region. Forces the regionmanager to recount all regions.

◆ setConstraintType()

void GIMLI::Region::setConstraintType ( Index type )

Set the constraint type for this region available(0, 1)

◆ setConstraintWeights() [1/2]

void GIMLI::Region::setConstraintWeights ( const RVector & cw )

Set region wide variable constraints weight from RVector cw. If this method is called background is forced to false.

◆ setConstraintWeights() [2/2]

void GIMLI::Region::setConstraintWeights ( double bc )

Set region wide constant constraints weight, (default = 1). If this method is called background is forced to false.

◆ setFixValue()

void GIMLI::Region::setFixValue ( double val )

Set fixed value for background regions that will not part of any value prolongation.

References GIMLI::Mesh::findCellByMarker().

◆ setLowerBound()

void GIMLI::Region::setLowerBound ( double lb )

set lower parameter bound for region

◆ setMarker()

void GIMLI::Region::setMarker ( SIndex marker )

inline

Set the region marker id

◆ setParameters()

void GIMLI::Region::setParameters	(	double	start,
		double	lb,
		double	ub,
		std::string	transString = `""`
	)

set start and upper/lower bounds for region

◆ setSingle()

void GIMLI::Region::setSingle ( bool background = true )

Set this region to be a single parameter region. Forces the regionmanager to recount all regions.

◆ setStartModel() [1/2]

void GIMLI::Region::setStartModel ( const RVector & start )

Set the values of start for the start model of this region.

◆ setStartModel() [2/2]

void GIMLI::Region::setStartModel ( double start )

Set the value of start into the start model vector for this region.

◆ setUpperBound()

void GIMLI::Region::setUpperBound ( double ub )

set lower parameter bound for region

◆ setZWeight()

void GIMLI::Region::setZWeight ( double zw )

inline

Set Region-Wide horizontal(z) weighting parameter for anisotropic smoothing
1 - isotrope, 0 – no vertical smoothing

◆ startParameter()

Index GIMLI::Region::startParameter ( ) const

inline

Return the first parameter id by means of a global count, defined in countParameter called from RegionManager

◆ transModel()

Trans< RVector >* GIMLI::Region::transModel ( )

inline

DEPRECATED use setStartModel ‍/ void setStartVector(const RVector & start); /! DEPRECATED use setStartModel *‍/ void setStartValue(double start){ DEPRECATED setStartModel(start);}

void setModelControl(double val); void setModelControl(const RVector & vec);

inline double modelControl() { return modelControl_; }

void setTransModel(Trans< RVector > & tM);

/*! Return a cumulative transform function based on transform functions for each region. Return NULL if no region is defined.

◆ zWeight()

double GIMLI::Region::zWeight ( ) const

inline

Return Region-Wide horizontal(z)-weighting parameter
