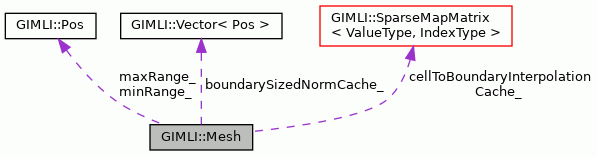

Collaboration diagram for GIMLI::Mesh:

Public Types
typedef RegionMarkerPLC	RegionMarker

typedef std::vector< RegionMarker >	RegionMarkerList

typedef RVector3	HoleMarker

typedef std::vector< RVector3 >	HoleMarkerList

Public Member Functions
	Mesh (Index dim=2, bool isGeometry=false)

	Mesh (const std::string &filename, bool createNeighbourInfos=true)

	Mesh (const Mesh &mesh)

Mesh &	operator= (const Mesh &mesh)

	~Mesh ()

void	clear ()

void	setStaticGeometry (bool stat)

bool	staticGeometry () const

void	setGeometry (bool b)

bool	isGeometry () const

void	setDimension (uint dim)

uint	dimension () const

uint	dim () const

Node *	createNode (double x, double y, double z, int marker=0)

Node *	createNode (const Node &node)

Node *	createNode (const RVector3 &pos, int marker=0)

Node *	createSecondaryNode (const RVector3 &pos, double tol=-1)

Node *	createNodeWithCheck (const RVector3 &pos, double tol=1e-6, bool warn=false, bool edgeCheck=false)

Boundary *	createBoundary (std::vector< Node * > &nodes, int marker=0, bool check=true)

Boundary *	createBoundary (const IndexArray &nodes, int marker=0, bool check=true)

Boundary *	createBoundary (const Boundary &bound, bool check=true)

Boundary *	createBoundary (const Cell &cell, bool check=true)

Boundary *	createNodeBoundary (Node &n1, int marker=0, bool check=true)

Boundary *	createEdge (Node &n1, Node &n2, int marker=0, bool check=true)

Boundary *	createEdge3 (Node &n1, Node &n2, Node &n3, int marker=0, bool check=true)

Boundary *	createTriangleFace (Node &n1, Node &n2, Node &n3, int marker=0, bool check=true)

Boundary *	createQuadrangleFace (Node &n1, Node &n2, Node &n3, Node &n4, int marker=0, bool check=true)

Cell *	createCell (int marker=0)

Cell *	createCell (std::vector< Node * > &nodes, int marker=0)

Cell *	createCell (const IndexArray &nodes, int marker=0)

Cell *	createCell (const Cell &cell)

Cell *	createTriangle (Node &n1, Node &n2, Node &n3, int marker=0)

Cell *	createQuadrangle (Node &n1, Node &n2, Node &n3, Node &n4, int marker=0)

Cell *	createTetrahedron (Node &n1, Node &n2, Node &n3, Node &n4, int marker=0)

Cell *	copyCell (const Cell &cell, double tol=1e-6)

Boundary *	copyBoundary (const Boundary &bound, double tol=1e-6, bool check=true)

void	deleteCells (const std::vector< Cell * > &cells)

void	create1DGrid (const RVector &x)

void	create2DGrid (const RVector &x, const RVector &y, int markerType=0, bool worldBoundaryMarker=false)

void	create3DGrid (const RVector &x, const RVector &y, const RVector &z, int markerType=0, bool worldBoundaryMarker=false)

void	createGrid (const RVector &x)

void	createGrid (const RVector &x, const RVector &y, int markerType=0, bool worldBoundaryMarker=false)

void	createGrid (const RVector &x, const RVector &y, const RVector &z, int markerType=0, bool worldBoundaryMarker=false)

void	createHull_ (const Mesh &mesh)

Mesh	createHull () const

void	createClosedGeometry (const std::vector< RVector3 > &vPos, int nSegments, double dxInner)

void	createClosedGeometryParaMesh (const std::vector< RVector3 > &vPos, int nSegments, double dxInner)

void	createClosedGeometryParaMesh (const std::vector< RVector3 > &vPos, int nSegments, double dxInner, const std::vector< RVector3 > &addit)

Mesh	createH2 () const

Mesh	createP2 () const

void	createMeshByCells (const Mesh &mesh, const std::vector< Cell * > &cells)

void	createMeshByBoundaries (const Mesh &mesh, const std::vector< Boundary * > &bounds)

Mesh	createMeshByCellIdx (const IndexArray &idxList)

void	createMeshByCellIdx (const Mesh &mesh, const IndexArray &idxList)

void	createMeshByMarker (const Mesh &mesh, int from, int to=-1)

Mesh	createSubMesh (const std::vector< Cell * > &cells) const

Mesh	createSubMesh (const std::vector< Boundary * > &bounds) const

Mesh	createSubMesh (const std::vector< Node * > &nodes) const

void	showInfos ()
	Show some infos.

const std::vector< Node *> &	nodes () const

const std::vector< Cell *> &	cells () const

const std::vector< Boundary *> &	boundaries () const

std::vector< Node *>	nodes (const IndexArray &ids) const

std::vector< Node *>	nodes (const BVector &b) const

std::vector< Cell *>	cells (const IndexArray &ids) const

std::vector< Cell *>	cells (const BVector &b) const

std::vector< Boundary *>	boundaries (const IndexArray &ids) const

std::vector< Boundary *>	boundaries (const BVector &b) const

Index	nodeCount (bool withSecNodes=false) const

Node &	node (Index i) const

Node &	node (Index i)

Index	secondaryNodeCount () const

Node &	secondaryNode (Index id) const

Node &	secondaryNode (Index id)

Index	cellCount () const

Cell &	cell (Index i) const

Cell &	cell (Index i)

Index	boundaryCount () const

Boundary &	boundary (Index i) const

Boundary &	boundary (Index i)

R3Vector	positions (bool withSecNodes=false) const

R3Vector	positions (const IndexArray &idx) const

R3Vector	nodeCenters () const

R3Vector	cellCenters () const

R3Vector	cellCenter () const

R3Vector	boundaryCenters () const

RVector &	cellSizes () const

RVector &	boundarySizes () const

R3Vector &	boundarySizedNormals () const

void	setBoundaryMarker (const IndexArray &ids, int marker)

void	setBoundaryMarkers (const IndexArray &ids, int marker)

void	setBoundaryMarkers (const IVector &marker)

IVector	boundaryMarkers () const

IVector	boundaryMarker () const

IVector	nodeMarkers () const

IVector	nodeMarker () const

IndexArray	findNodesIdxByMarker (int marker) const

std::vector< Boundary *>	findBoundaryByMarker (int marker) const

std::vector< Boundary *>	findBoundaryByMarker (int from, int to) const

Cell *	findCell (const RVector3 &pos, size_t &counter, bool extensive) const

Cell *	findCell (const RVector3 &pos, bool extensive=true) const

Index	findNearestNode (const RVector3 &pos)

std::vector< Cell *>	findCellByMarker (int from, int to=0) const

std::vector< Cell *>	findCellByAttribute (double from, double to=0.0) const

std::vector< Cell *>	findCellsAlongRay (const RVector3 &start, const RVector3 &dir, R3Vector &pos) const

void	fillEmptyCells (const std::vector< Cell * > &emptyList, double background=-1.0)

void	prolongateEmptyCellsValues (RVector &vals, double background=-1.0) const

void	recountNodes ()

void	sortNodes (const IndexArray &perm)

bool	neighboursKnown () const

void	cleanNeighbourInfos ()

void	createNeighbourInfos (bool force=false)

void	createNeighbourInfosCell_ (Cell *c)

void	relax ()

void	smooth (bool nodeMoving=true, bool edgeSwapping=true, uint smoothFunction=1, uint smoothIteration=10)

Mesh &	scale (const RVector3 &s)

Mesh &	scale (const double &s)

Mesh &	translate (const RVector3 &t)

Mesh &	rotate (const RVector3 &r)

void	swapCoordinates (Index i, Index j)

template<class Matrix >
Mesh &	transform (const Matrix &mat)

int	save (const std::string &fileName, IOFormat format=Binary) const

int	saveAscii (const std::string &fileName) const

int	saveBinary (const std::string &fileName) const

void	load (const std::string &fileName, bool createNeighbours=true, IOFormat format=Binary)

void	loadAscii (const std::string &fileName)

void	importMod (const std::string &fileName)

void	importVTK (const std::string &fbody)

void	importVTU (const std::string &fbody)

void	importSTL (const std::string &fileName, bool isBinary=false)

void	loadBinary (const std::string &fileName)

void	saveBinaryV2 (const std::string &fbody) const

void	loadBinaryV2 (const std::string &fbody)

int	exportSimple (const std::string &fbody, const RVector &data) const

int	exportMidCellValue (const std::string &fileName, const RVector &data1, const RVector &data2) const

int	exportMidCellValue (const std::string &fileName, const RVector &data1) const

void	exportVTK (const std::string &fbody, const std::map< std::string, RVector > &data, const std::vector< RVector3 > &vec, bool writeCells=true) const

void	exportVTK (const std::string &fbody, const std::map< std::string, RVector > &data, bool writeCells=true) const

void	exportVTK (const std::string &fbody, bool writeCells=true) const

void	exportVTK (const std::string &fbody, const std::vector< RVector3 > &vec, bool writeCells=true) const

void	exportVTK (const std::string &fbody, const RVector &arr) const

void	readVTKPoints_ (std::fstream &file, const std::vector< std::string > &row)

void	readVTKCells_ (std::fstream &file, const std::vector< std::string > &row)

void	readVTKScalars_ (std::fstream &file, const std::vector< std::string > &row)

void	readVTKPolygons_ (std::fstream &file, const std::vector< std::string > &row)

void	exportVTU (const std::string &filename, bool binary=false) const

void	exportBoundaryVTU (const std::string &fbody, bool binary=false) const

void	addVTUPiece_ (std::fstream &file, const Mesh &mesh, const std::map< std::string, RVector > &data) const

void	exportAsTetgenPolyFile (const std::string &filename)

void	addExportData (const std::string &name, const RVector &data)

RVector	exportData (const std::string &name) const

const std::map< std::string, RVector > &	exportDataMap () const

void	setExportDataMap (const std::map< std::string, RVector > &eMap)

void	clearExportData ()

void	addData (const std::string &name, const CVector &data)

void	addData (const std::string &name, const RVector &data)

RVector	data (const std::string &name) const

bool	haveData (const std::string &name) const

const std::map< std::string, RVector > &	dataMap () const

void	setDataMap (const std::map< std::string, RVector > m)

void	dataInfo () const

void	setCommentString (const std::string &commentString)

const std::string &	commentString () const

void	mapCellAttributes (const std::map< float, float > &aMap)

void	mapAttributeToParameter (const IndexArray &cellMapIndex, const RVector &attributeMap, double defaultVal)

void	mapBoundaryMarker (const std::map< int, int > &aMap)

void	setCellAttributes (const RVector &attribute)

void	setCellAttributes (double attribute)

RVector	cellAttributes () const

void	setCellMarkers (const IndexArray &ids, int marker)

void	setCellMarkers (const IVector &marker)

void	setCellMarkers (const RVector &attribute)

IVector	cellMarkers () const

double	xmin () const

double	ymin () const

double	zmin () const

double	xmax () const

double	ymax () const

double	zmax () const

const BoundingBox	boundingBox () const

RSparseMapMatrix	interpolationMatrix (const R3Vector &q)

void	interpolationMatrix (const R3Vector &q, RSparseMapMatrix &I)

RSparseMapMatrix &	cellToBoundaryInterpolation () const

RVector	divergence (const R3Vector &V) const

R3Vector	boundaryDataToCellGradient (const RVector &boundaryData) const

R3Vector	cellDataToBoundaryGradient (const RVector &cellData) const

R3Vector	cellDataToBoundaryGradient (const RVector &cellData, const R3Vector &cellGradient) const

void	addRegionMarker (const RVector3 &pos, int marker, double area=0)

void	addRegionMarker (const RegionMarker &reg)

const RegionMarkerList &	regionMarker () const

void	addHoleMarker (const RVector3 &pos)

const HoleMarkerList &	holeMarker () const

Protected Member Functions
void	copy_ (const Mesh &mesh)

void	findRange_ () const

Node *	createNodeGC_ (const RVector3 &pos, int marker)

Node *	createNode_ (const RVector3 &pos, int marker)

Node *	createSecondaryNode_ (const RVector3 &pos)

template<class B >
Boundary *	createBoundary_ (std::vector< Node * > &nodes, int marker, int id)

template<class B >
Boundary *	createBoundaryChecked_ (std::vector< Node * > &nodes, int marker, bool check=true)

template<class C >
Cell *	createCell_ (std::vector< Node * > &nodes, int marker, int id)

Node *	createRefinementNode_ (Node n0, Node n1, std::map< std::pair< Index, Index >, Node * > &nodeMatrix)

void	createRefined_ (const Mesh &mesh, bool p2, bool r2)

Cell *	findCellBySlopeSearch_ (const RVector3 &pos, Cell *start, size_t &count, bool tagging) const

void	fillKDTree_ () const

Protected Attributes
std::vector< Node *>	nodeVector_

std::vector< Node *>	secNodeVector_

std::vector< Boundary *>	boundaryVector_

std::vector< Cell *>	cellVector_

uint	dimension_

RVector3	minRange_

RVector3	maxRange_

bool	rangesKnown_

bool	neighboursKnown_

KDTreeWrapper *	tree_

bool	staticGeometry_

bool	isGeometry_

RVector	cellSizesCache_

RVector	boundarySizesCache_

R3Vector	boundarySizedNormCache_

RSparseMapMatrix *	cellToBoundaryInterpolationCache_

bool	oldTet10NumberingStyle_

std::map< std::string, RVector >	exportDataMap_

std::string	commentString_

RegionMarkerList	regionMarker_

HoleMarkerList	holeMarker_

Constructor & Destructor Documentation

◆ Mesh() [1/3]

GIMLI::Mesh::Mesh	(	Index	dim = `2`,
		bool	isGeometry = `false`
	)

Default constructor, create empty mesh with dimension dim If this mesh is supposed to be a geometry definition, all created nodes will be checked for duplicates.

◆ Mesh() [2/3]

GIMLI::Mesh::Mesh	(	const std::string &	filename,
		bool	createNeighbourInfos = `true`
	)

Constructor, read mesh from filename

References load().

◆ Mesh() [3/3]

GIMLI::Mesh::Mesh ( const Mesh & mesh )

Copy constructor.

◆ ~Mesh()

GIMLI::Mesh::~Mesh ( )

Default destructor.

References clear().

Member Function Documentation

◆ addData()

void GIMLI::Mesh::addData	(	const std::string &	name,
		const RVector &	data
	)

inline

Add data to the mesh that will be saved with by using the binary mesh format v.2. or exported with the appropriate name in VTK format, if the size of data equals the amount of nodes, cells or boundaries.

◆ addExportData()

void GIMLI::Mesh::addExportData	(	const std::string &	name,
		const RVector &	data
	)

DEPRECATED will be removed. Add data to the mesh that will be saved with by using the binary mesh format v.2. or exported with the appropriate name in VTK format, if the size of data equals the amount of nodes, cells or boundaries.

References data().

Referenced by GIMLI::interpolate(), GIMLI::Inversion< ModelValType >::oneStep(), and GIMLI::DCMultiElectrodeModelling::response().

◆ addHoleMarker()

void GIMLI::Mesh::addHoleMarker ( const RVector3 & pos )

Add a hole marker for tetgen or triangle creation if the mesh is a PLC

Referenced by addRegionMarker(), and operator=().

◆ addRegionMarker()

void GIMLI::Mesh::addRegionMarker	(	const RVector3 &	pos,
		int	marker,
		double	area = `0`
	)

Add a region marker for tetgen or triangle creation if the mesh is a PLC, if area is < 0 a hole is added.

References addHoleMarker().

Referenced by operator=(), and smooth().

◆ addVTUPiece_()

void GIMLI::Mesh::addVTUPiece_	(	std::fstream &	file,
		const Mesh &	mesh,
		const std::map< std::string, RVector > &	data
	)		const

Internal function for exporting VTU

References GIMLI::Matrix< ValueType >::cols(), create2DGrid(), GIMLI::BaseEntity::id(), GIMLI::loadMatrixCol(), GIMLI::MeshEntity::rtti(), GIMLI::unique(), GIMLI::x(), and GIMLI::y().

Referenced by exportBoundaryVTU(), and exportVTU().

◆ boundaries() [1/3]

const std::vector< Boundary * >& GIMLI::Mesh::boundaries ( ) const

inline

Return const reference to all boundaries

Referenced by GIMLI::addTriangleBoundary(), boundaries(), GIMLI::calcGBounds(), and exportBoundaryVTU().

◆ boundaries() [2/3]

std::vector< Boundary *> GIMLI::Mesh::boundaries ( const IndexArray & ids ) const

Return vector of boundaries from index list

◆ boundaries() [3/3]

std::vector< Boundary *> GIMLI::Mesh::boundaries ( const BVector & b ) const

Return a vector of boundary ptrs matching BVector b.

References boundaries(), and GIMLI::find().

◆ boundaryCenters()

R3Vector GIMLI::Mesh::boundaryCenters ( ) const

Return a vector of all center positions for all boundaries

References GIMLI::MeshEntity::center().

◆ boundaryDataToCellGradient()

R3Vector GIMLI::Mesh::boundaryDataToCellGradient ( const RVector & boundaryData ) const

Interpolate boundary based values to cell based gradients.

References boundarySizedNormals(), GIMLI::BaseEntity::id(), and GIMLI::Boundary::leftCell().

Referenced by cellDataToBoundaryGradient().

◆ boundaryMarker()

IVector GIMLI::Mesh::boundaryMarker ( ) const

DEPRECATED

References boundaryMarkers().

◆ boundaryMarkers()

IVector GIMLI::Mesh::boundaryMarkers ( ) const

Return a vector of all boundary marker

Referenced by boundaryMarker().

◆ boundarySizedNormals()

R3Vector & GIMLI::Mesh::boundarySizedNormals ( ) const

Return the reference to the vector of scaled normal directions for each boundary. Cached for static geometry and will be build on first call. Not thread safe, perhaps not python GC safe. Return $\{A_i \vec{n}_i\} \forall i = [0..N_B]$ . Where $ A_i$ is the size and $\vec{n}_i$ the normal direction for the i-th boundary. If you want to use this, i.e. for the calculation of inside or outside flow through the boundary, you need to recognize the orientation of this boundary to the cell the flow goes into or comes from. For the left cell neighbor the normal direction should be always the outer normal.

References createNeighbourInfos(), dim(), GIMLI::Vector< ValueType >::resize(), and staticGeometry_.

Referenced by boundaryDataToCellGradient(), and divergence().

◆ boundarySizes()

RVector & GIMLI::Mesh::boundarySizes ( ) const

Return the reference to a RVector of all boundary sizes. Cached for static geometry.

References GIMLI::Vector< ValueType >::resize(), GIMLI::MeshEntity::size(), and staticGeometry_.

◆ cellAttributes()

RVector GIMLI::Mesh::cellAttributes ( ) const

Return a RVector of all cell attributes

Referenced by GIMLI::DCMultiElectrodeModelling::createJacobian(), GIMLI::dcfemDomainAssembleStiffnessMatrix(), exportVTK(), exportVTU(), fillEmptyCells(), GIMLI::DCMultiElectrodeModelling::mapERTModel(), GIMLI::Inversion< ModelValType >::oneStep(), operator=(), and GIMLI::DCMultiElectrodeModelling::response().

◆ cellCenters()

R3Vector GIMLI::Mesh::cellCenters ( ) const

Return a vector of all cell center positions

References GIMLI::MeshEntity::center().

◆ cellDataToBoundaryGradient() [1/2]

R3Vector GIMLI::Mesh::cellDataToBoundaryGradient ( const RVector & cellData ) const

Interpolate cell based values to boundary based gradients.

References boundaryDataToCellGradient(), and cellToBoundaryInterpolation().

◆ cellDataToBoundaryGradient() [2/2]

R3Vector GIMLI::Mesh::cellDataToBoundaryGradient	(	const RVector &	cellData,
		const R3Vector &	cellGradient
	)		const

Interpolate cell based values to boundary based gradients with a given cell Gradient.

References GIMLI::MeshEntity::center(), GIMLI::BaseEntity::id(), GIMLI::Boundary::leftCell(), and GIMLI::Boundary::norm().

◆ cellMarkers()

IVector GIMLI::Mesh::cellMarkers ( ) const

Return a vector of all cell marker

Referenced by GIMLI::CreateSensitivityColMT< ValueType >::calc1(), createH2(), createRefined_(), and GIMLI::prepExportSensitivityData().

◆ cells() [1/2]

std::vector< Cell *> GIMLI::Mesh::cells ( const IndexArray & ids ) const

Return vector of cells from index list

◆ cells() [2/2]

std::vector< Cell *> GIMLI::Mesh::cells ( const BVector & b ) const

Return a vector of cells ptrs matching BVector b.

References GIMLI::find().

◆ cellSizes()

RVector & GIMLI::Mesh::cellSizes ( ) const

Return the reference to a RVector of all cell sizes. Cached for static geometry.

References GIMLI::Vector< ValueType >::resize(), GIMLI::MeshEntity::size(), and staticGeometry_.

Referenced by divergence(), and GIMLI::prepExportSensitivityData().

◆ cellToBoundaryInterpolation()

RSparseMapMatrix & GIMLI::Mesh::cellToBoundaryInterpolation ( ) const

Return the reference to the matrix for cell value to boundary value interpolation matrix.

References GIMLI::MeshEntity::center(), GIMLI::BaseEntity::id(), GIMLI::Boundary::leftCell(), and staticGeometry_.

Referenced by cellDataToBoundaryGradient().

◆ cleanNeighbourInfos()

void GIMLI::Mesh::cleanNeighbourInfos ( )

Remove from each boundary the ptr to the corresponding left and right cell

Referenced by createNeighbourInfos().

◆ clear()

void GIMLI::Mesh::clear ( )

Clear all data, inclusive all caches.

Referenced by create2DGrid(), create3DGrid(), createHull(), createMeshByBoundaries(), createMeshByCellIdx(), createMeshByCells(), createNeighbourInfosCell_(), createRefined_(), exportVTK(), loadBinary(), loadBinaryV2(), operator=(), GIMLI::TriangleWrapper::transformTriangleToMesh_(), and ~Mesh().

◆ clearExportData()

void GIMLI::Mesh::clearExportData ( )

Empty the data map.

Referenced by GIMLI::Inversion< ModelValType >::oneStep().

◆ commentString()

const std::string& GIMLI::Mesh::commentString ( ) const

inline

Return comment for VTK Ascii export headline.

◆ copyBoundary()

Boundary * GIMLI::Mesh::copyBoundary	(	const Boundary &	bound,
		double	tol = `1e-6`,
		bool	check = `true`
	)

Create a boundary as a copy of a boundary from an alternative mesh. Each node of the new cell will be created with duplication check and reused if there is already a node withing the tolerance distance tol. tol=-1 disables this duplication check.

References createNodeWithCheck().

◆ copyCell()

Cell * GIMLI::Mesh::copyCell	(	const Cell &	cell,
		double	tol = `1e-6`
	)

Create a cell as a copy of a cell from an alternative mesh. Each node of the new cell will be created with duplication check and reused if there is already a node withing the tolerance distance tol. tol=-1 disables this duplication check.

References createCell(), and createNodeWithCheck().

Referenced by GIMLI::addTriangleBoundary().

◆ create2DGrid()

void GIMLI::Mesh::create2DGrid	(	const RVector &	x,
		const RVector &	y,
		int	markerType = `0`,
		bool	worldBoundaryMarker = `false`
	)

Default boundary marker are -x[1], +x[2], +z[3], -z[4]. If worldBoundaryMarker is set it becomes +z[-1], else[-2].

References clear(), createCell(), createNeighbourInfos(), GIMLI::Boundary::leftCell(), setDimension(), and GIMLI::unique().

Referenced by addVTUPiece_(), and GIMLI::createMesh2D().

◆ create3DGrid()

void GIMLI::Mesh::create3DGrid	(	const RVector &	x,
		const RVector &	y,
		const RVector &	z,
		int	markerType = `0`,
		bool	worldBoundaryMarker = `false`
	)

Default boundary marker are -x[1], +x[2], +z[3], -z[4], -y[5], +z[6]. If worldBoundaryMarker is set it becomes +z[-1], else[-2]. You can exportBoundaryVTU and take a look with Paraview.

References clear(), createCell(), createNeighbourInfos(), GIMLI::Boundary::leftCell(), setDimension(), and GIMLI::unique().

Referenced by GIMLI::createMesh3D(), and exportVTK().

◆ createBoundary()

Boundary * GIMLI::Mesh::createBoundary	(	const IndexArray &	nodes,
		int	marker = `0`,
		bool	check = `true`
	)

Create a boundary from the given node indieces

References GIMLI::BaseEntity::id().

◆ createCell() [1/2]

Cell * GIMLI::Mesh::createCell ( int marker = 0 )

Create empty cell without a node or a shape.

Referenced by copyCell(), create2DGrid(), create3DGrid(), createCell(), GIMLI::createMesh2D(), GIMLI::createMesh3D(), createMeshByCells(), createNeighbourInfosCell_(), createRefined_(), exportVTK(), GIMLI::interpolateSurface(), loadBinary(), loadBinaryV2(), and operator=().

◆ createCell() [2/2]

Cell * GIMLI::Mesh::createCell	(	const IndexArray &	nodes,
		int	marker = `0`
	)

Create a cell from the given node indieces

References createCell(), and GIMLI::BaseEntity::id().

◆ createGrid() [1/3]

void GIMLI::Mesh::createGrid ( const RVector & x )

inline

Create one dimensional grid. Boundary on the domain border will get marker: 1,2 for: left, right.

Referenced by GIMLI::createGrid().

◆ createGrid() [2/3]

void GIMLI::Mesh::createGrid	(	const RVector &	x,
		const RVector &	y,
		int	markerType = `0`,
		bool	worldBoundaryMarker = `false`
	)

inline

Create two dimensional grid. Boundary on the domain border will get the marker: 1,2,3,4 for: left, right, top, bottom

◆ createGrid() [3/3]

void GIMLI::Mesh::createGrid	(	const RVector &	x,
		const RVector &	y,
		const RVector &	z,
		int	markerType = `0`,
		bool	worldBoundaryMarker = `false`
	)

inline

Create three dimensional grid. Boundary on the domain border will get the marker: 1,2,3,4,5,6 for: left, right, top, bottom, front, back

◆ createH2()

Mesh GIMLI::Mesh::createH2 ( ) const

Create and copy global H2 mesh of this mesh.

References cellMarkers(), createRefined_(), dimension(), and setCellAttributes().

Referenced by GIMLI::ModellingBase::startModel().

◆ createHull()

Mesh GIMLI::Mesh::createHull ( ) const

Create 3D mesh with 3D boundary elements from this 2D mesh cells. Increase mesh dimension. Mesh should contain 2D cells.

References clear(), and dim().

◆ createMeshByBoundaries()

void GIMLI::Mesh::createMeshByBoundaries	(	const Mesh &	mesh,
		const std::vector< Boundary * > &	bounds
	)

Create a partly mesh without cells from mesh, based on a vector of ptrs to boundaries

Create new boundaries

References clear(), dim(), GIMLI::BaseEntity::id(), and setDimension().

Referenced by createSubMesh(), and exportBoundaryVTU().

◆ createMeshByCellIdx() [1/2]

Mesh GIMLI::Mesh::createMeshByCellIdx ( const IndexArray & idxList )

Create a new mesh that is a part from this mesh, based on cell-ids

References createMeshByCellIdx(), and dimension().

Referenced by createMeshByCellIdx(), createMeshByMarker(), and findNearestNode().

◆ createMeshByCellIdx() [2/2]

void GIMLI::Mesh::createMeshByCellIdx	(	const Mesh &	mesh,
		const IndexArray &	idxList
	)

Create a partly mesh from mesh, based on cell-ids

References clear(), createMeshByCells(), dim(), setDimension(), GIMLI::str(), and GIMLI::unique().

◆ createMeshByCells()

void GIMLI::Mesh::createMeshByCells	(	const Mesh &	mesh,
		const std::vector< Cell * > &	cells
	)

Create a partly mesh without cells from mesh, based on a vector of ptrs to boundaries

Create new cells

copy all boundary with marker != 0

check that all nodes have a common cell

Copy data if available

Create all remaining boundaries

References clear(), createCell(), createNeighbourInfos(), dataMap(), dim(), GIMLI::BaseEntity::id(), and setDimension().

Referenced by createMeshByCellIdx(), and createSubMesh().

◆ createMeshByMarker()

void GIMLI::Mesh::createMeshByMarker	(	const Mesh &	mesh,
		int	from,
		int	to = `-1`
	)

Create a partly mesh from mesh, based on meshs attributes. For a single attribute set to to 0, for unlimited set to to -1

References createMeshByCellIdx().

◆ createNeighbourInfos()

void GIMLI::Mesh::createNeighbourInfos ( bool force = false )

Search and set to each boundary the corresponding left and right cell.

References cleanNeighbourInfos(), and createNeighbourInfosCell_().

Referenced by GIMLI::addTriangleBoundary(), boundarySizedNormals(), create2DGrid(), create3DGrid(), createMeshByCells(), createNeighbourInfosCell_(), fillEmptyCells(), GIMLI::interpolateSurface(), load(), operator=(), GIMLI::setAllNeumannBoundaryConditions(), GIMLI::setDefaultBERTBoundaryConditions(), and smooth().

◆ createNeighbourInfosCell_()

void GIMLI::Mesh::createNeighbourInfosCell_ ( Cell * c )

Create and store boundaries and neighboring information for this cell.

References GIMLI::Cell::boundaryNodes(), clear(), createCell(), createNeighbourInfos(), GIMLI::Cell::findNeighbourCell(), GIMLI::Boundary::leftCell(), setDimension(), and GIMLI::unique().

Referenced by createNeighbourInfos(), and findNearestNode().

◆ createNodeGC_()

Node * GIMLI::Mesh::createNodeGC_	(	const RVector3 &	pos,
		int	marker
	)

protected

Ensure is geometry check

References createNodeWithCheck(), GIMLI::x(), GIMLI::y(), and GIMLI::z().

◆ createNodeWithCheck()

Node * GIMLI::Mesh::createNodeWithCheck	(	const RVector3 &	pos,
		double	tol = `1e-6`,
		bool	warn = `false`,
		bool	edgeCheck = `false`
	)

Create new Node with duplication checks. Returns the already existing node when its within a tolerance distance to pos. If edgeCheck is set, any 2d (p1) boundary edges will be checked for any intersection with pos and splitted if necessary.

References dim(), GIMLI::KDTreeWrapper::insert(), GIMLI::KDTreeWrapper::nearest(), GIMLI::Boundary::rtti(), and GIMLI::str().

Referenced by copyBoundary(), copyCell(), createNodeGC_(), and importSTL().

◆ createP2()

Mesh GIMLI::Mesh::createP2 ( ) const

Create and copy global P2 mesh of this mesh.

References createRefined_(), dimension(), and GIMLI::BaseEntity::id().

Referenced by GIMLI::DCSRMultiElectrodeModelling::checkPrimpotentials_(), and GIMLI::ModellingBase::startModel().

◆ createRefined_()

void GIMLI::Mesh::createRefined_	(	const Mesh &	mesh,
		bool	p2,
		bool	r2
	)

protected

Copy data if available

copy original marker into the new mesh

References cellMarkers(), clear(), createCell(), dataMap(), GIMLI::BaseEntity::id(), GIMLI::Cell::rtti(), GIMLI::Boundary::rtti(), setCellMarkers(), and GIMLI::Shape::xyz().

Referenced by createH2(), and createP2().

◆ createSecondaryNode()

Node * GIMLI::Mesh::createSecondaryNode	(	const RVector3 &	pos,
		double	tol = `-1`
	)

Create a secondary node, which is stored in an aditional list for additional use. If tolerance tol set to a value > 0, then it will be checked if there is already a node at this position and return a ptr to the existing node instead of creating a new.

References GIMLI::KDTreeWrapper::insert(), and GIMLI::KDTreeWrapper::nearest().

Referenced by operator=().

◆ createSubMesh() [1/3]

Mesh GIMLI::Mesh::createSubMesh ( const std::vector< Cell * > & cells ) const

Syntactic sugar to extract a part of the mesh based on cells.

References createMeshByCells(), and dimension().

◆ createSubMesh() [2/3]

Mesh GIMLI::Mesh::createSubMesh ( const std::vector< Boundary * > & bounds ) const

Syntactic sugar to extract a part of the mesh based on boundaries.

References createMeshByBoundaries(), and dimension().

◆ createSubMesh() [3/3]

Mesh GIMLI::Mesh::createSubMesh ( const std::vector< Node * > & nodes ) const

Syntactic sugar to extract a part of the mesh based on nodes with associated cells and boundaries.

References dimension().

◆ data()

RVector GIMLI::Mesh::data ( const std::string & name ) const

inline

Return the data with a given name. If there is no such data an exception is thrown.

Referenced by addExportData(), exportVTK(), exportVTU(), GIMLI::getComplexResistivities(), and loadBinaryV2().

◆ dataInfo()

void GIMLI::Mesh::dataInfo ( ) const

Print data map info.

References GIMLI::str().

◆ dataMap()

const std::map< std::string, RVector >& GIMLI::Mesh::dataMap ( ) const

inline

Return the full data map read only.

Referenced by createMeshByCells(), createRefined_(), and exportVTK().

◆ deleteCells()

void GIMLI::Mesh::deleteCells ( const std::vector< Cell * > & cells )

Delete all given cells from the given mesh. Warning will be really deleted.

References staticGeometry_.

◆ dim()

uint GIMLI::Mesh::dim ( ) const

inline

◆ dimension()

uint GIMLI::Mesh::dimension ( ) const

inline

Return the dimension of this mesh.

Referenced by createH2(), GIMLI::DCMultiElectrodeModelling::createJacobian(), createMeshByCellIdx(), createP2(), createSubMesh(), saveBinary(), saveBinaryV2(), GIMLI::setAllNeumannBoundaryConditions(), and GIMLI::setDefaultBERTBoundaryConditions().

◆ divergence()

RVector GIMLI::Mesh::divergence ( const R3Vector & V ) const

Return the divergence for each cell of a given vector field for each boundary. The divergence is calculated by simple 1 point boundary integration over each cell. $d(cell) = \sum_boundaries V(boundary center) \cdot n(boundary)$ Higher order integration needs to be implemented. Contact the author if you need this.

References boundarySizedNormals(), cellSizes(), GIMLI::BaseEntity::id(), and GIMLI::Boundary::leftCell().

◆ exportBoundaryVTU()

void GIMLI::Mesh::exportBoundaryVTU	(	const std::string &	fbody,
		bool	binary = `false`
	)		const

Export the boundary of this mesh in vtu format: Visualization Toolkit Unstructured Points Data (http://www.vtk.org) Set Binary to true writes the datacontent in binary format. The file suffix .vtu will be added or substituted if .vtu or .vtk is found.

References addVTUPiece_(), boundaries(), and createMeshByBoundaries().

◆ exportData()

RVector GIMLI::Mesh::exportData ( const std::string & name ) const

DEPRECATED Return the data with a given name. If there is no such data an exception is thrown.

Referenced by GIMLI::interpolate().

◆ exportDataMap()

const std::map< std::string, RVector >& GIMLI::Mesh::exportDataMap ( ) const

inline

DEPRECATED Return the full data map read only.

Referenced by GIMLI::interpolate(), operator=(), and GIMLI::prepExportSensitivityData().

◆ exportMidCellValue()

int GIMLI::Mesh::exportMidCellValue	(	const std::string &	fileName,
		const RVector &	data1,
		const RVector &	data2
	)		const

Very simple export filter. Write to file fileName: x_0 y_0 [z_0] data1_0 [data2]_0
x_n y_n [z_n] data1_n [data2]_n
with n = number of cells, and x y [z] == cell center

References GIMLI::MeshEntity::center(), GIMLI::BaseEntity::id(), GIMLI::Matrix< ValueType >::push_back(), and GIMLI::saveMatrixCol().

◆ exportVTK() [1/3]

void GIMLI::Mesh::exportVTK	(	const std::string &	fbody,
		bool	writeCells = `true`
	)		const

Export mesh and whole exportData map

◆ exportVTK() [2/3]

void GIMLI::Mesh::exportVTK	(	const std::string &	fbody,
		const std::vector< RVector3 > &	vec,
		bool	writeCells = `true`
	)		const

Export mesh and whole exportData map and vector data in vec

References dataMap().

◆ exportVTK() [3/3]

void GIMLI::Mesh::exportVTK	(	const std::string &	fbody,
		const RVector &	arr
	)		const

Export mesh with one additional array that will called 'arr'

References cellAttributes(), clear(), create3DGrid(), createCell(), data(), dataMap(), GIMLI::BaseEntity::id(), GIMLI::nonZero(), positions(), GIMLI::Cell::rtti(), GIMLI::Boundary::rtti(), GIMLI::str(), GIMLI::x(), GIMLI::y(), and GIMLI::z().

◆ exportVTU()

void GIMLI::Mesh::exportVTU	(	const std::string &	filename,
		bool	binary = `false`
	)		const

Export the mesh in filename using vtu format: Visualization Toolkit Unstructured Points Data (http://www.vtk.org) Set binary to true writes the data content in binary format. The file suffix .vtu will be added or substituted if .vtu or .vtk is found. exportData, cell.marker and cell.attribute will be exported as data.

References addVTUPiece_(), cellAttributes(), and data().

◆ fillEmptyCells()

void GIMLI::Mesh::fillEmptyCells	(	const std::vector< Cell * > &	emptyList,
		double	background = `-1.0`
	)

DEPRECATED Prolongate the attribute of each cell in emptyList by the attribute from neighbouring cells. The attributes have to be lower than TOLERANCE. This function is called recursively until all zero-attribute-cells in emptyList are filled with an attribute greater than Zero.

References cellAttributes(), createNeighbourInfos(), dim(), GIMLI::Boundary::norm(), and smooth().

◆ findBoundaryByMarker() [1/2]

std::vector< Boundary *> GIMLI::Mesh::findBoundaryByMarker ( int marker ) const

Return an index list of all nodes that match the marker

Return a vector of boundary ptrs with the boundary marker equal marker.

Referenced by GIMLI::addTriangleBoundary().

◆ findBoundaryByMarker() [2/2]

std::vector< Boundary *> GIMLI::Mesh::findBoundaryByMarker	(	int	from,
		int	to
	)		const

Return a vector of boundary ptrs with the boundary marker between [from and to).
for to equal open end set to = MAX_INT

◆ findCell() [1/2]

Cell * GIMLI::Mesh::findCell	(	const RVector3 &	pos,
		size_t &	counter,
		bool	extensive
	)		const

Return ptr to the cell that match position pos, counter holds amount of touch tests. Searching is done first by nearest-neighbour-kd-tree search, followed by slope-search if extensive is set. Return NULL if no cell can be found.

** *sigh, no luck with simple kd-tree search, try more expensive full slope search

References GIMLI::Vector< ValueType >::clear(), GIMLI::KDTreeWrapper::nearest(), and GIMLI::BaseEntity::untag().

Referenced by findCellsAlongRay(), GIMLI::interpolate(), interpolationMatrix(), and GIMLI::DCMultiElectrodeModelling::searchElectrodes_().

◆ findCell() [2/2]

Cell* GIMLI::Mesh::findCell	(	const RVector3 &	pos,
		bool	extensive = `true`
	)		const

inline

Shortcut for findCell(const RVector3 & pos, size_t & counter, bool extensive)

◆ findCellByAttribute()

std::vector< Cell *> GIMLI::Mesh::findCellByAttribute	(	double	from,
		double	to = `0.0`
	)		const

Return vector of cell ptrs with attribute match the range [from .. to).
For single attribute match to is set to 0.0, for open end set to = -1.0

◆ findCellByMarker()

std::vector< Cell *> GIMLI::Mesh::findCellByMarker	(	int	from,
		int	to = `0`
	)		const

Return vector of cell ptrs with marker match the range [from .. to).
For single marker match to is set to 0, for open end set to = -1

Referenced by GIMLI::CreateSensitivityColMT< ValueType >::calc1(), and GIMLI::Region::resize().

◆ findCellsAlongRay()

std::vector< Cell *> GIMLI::Mesh::findCellsAlongRay	(	const RVector3 &	start,
		const RVector3 &	dir,
		R3Vector &	pos
	)		const

Return vector of cells that are intersected with a given ray from start to end. Intersecting positions, i.e., the travel path are stored in pos. Note this will not yet check if the ray lies completely along a boundary. This will probably fail and need to be implemented.

References GIMLI::Cell::boundary(), GIMLI::Vector< ValueType >::clean(), findCell(), GIMLI::Shape::intersectRay(), and GIMLI::KDTreeWrapper::nearest().

◆ findNearestNode()

Index GIMLI::Mesh::findNearestNode ( const RVector3 & pos )

Return the index to the node of this mesh with the smallest distance to pos.

References createMeshByCellIdx(), createNeighbourInfosCell_(), GIMLI::BaseEntity::id(), GIMLI::Shape::isInside(), GIMLI::KDTreeWrapper::nearest(), GIMLI::BaseEntity::tag(), and GIMLI::BaseEntity::tagged().

◆ findNodesIdxByMarker()

IndexArray GIMLI::Mesh::findNodesIdxByMarker ( int marker ) const

Return an index vector of all nodes that match the marker

References GIMLI::find(), and nodeMarkers().

Referenced by GIMLI::DCMultiElectrodeModelling::assembleStiffnessMatrixDCFEMByPass(), and GIMLI::DCMultiElectrodeModelling::searchElectrodes_().

◆ haveData()

bool GIMLI::Mesh::haveData ( const std::string & name ) const

inline

Return True if date with such a name exists.

Referenced by GIMLI::DCMultiElectrodeModelling::assembleStiffnessMatrixDCFEMByPass(), and GIMLI::getComplexResistivities().

◆ holeMarker()

const HoleMarkerList& GIMLI::Mesh::holeMarker ( ) const

inline

Return read only reference for all defined hole regions.

Referenced by operator=(), and GIMLI::TriangleWrapper::transformMeshToTriangle_().

◆ importSTL()

void GIMLI::Mesh::importSTL	(	const std::string &	fileName,
		bool	isBinary = `false`
	)

Import Ascii STL, and save triangles as Boundary(ies).

References createNodeWithCheck(), and GIMLI::toStr().

◆ interpolationMatrix() [1/2]

RSparseMapMatrix GIMLI::Mesh::interpolationMatrix ( const R3Vector & q )

Return the interpolation matrix I from all node positions to the query points q. I is a (len(q) x nodeCount()) SparseMapMatrix. To perform the interpolation just calculate the matrix vector product. uInterpolated = I.mult(uPerNode) or uInterpolated = I * uPerNode

◆ interpolationMatrix() [2/2]

void GIMLI::Mesh::interpolationMatrix	(	const R3Vector &	q,
		RSparseMapMatrix &	I
	)

Inplace version of interpolationMatrix(const R3Vector & q)

References findCell(), GIMLI::MeshEntity::ids(), GIMLI::MeshEntity::N(), GIMLI::SparseMapMatrix< ValueType, IndexType >::resize(), GIMLI::Vector< ValueType >::resize(), and GIMLI::Shape::rst().

◆ isGeometry()

bool GIMLI::Mesh::isGeometry ( ) const

inline

Return if the mesh is a geometry definition.

Referenced by operator=().

◆ load()

void GIMLI::Mesh::load	(	const std::string &	fileName,
		bool	createNeighbours = `true`,
		IOFormat	format = `Binary`
	)

Load Mesh from file and try to import fileformat regarding file suffix. If createNeighbourInfos is set, the mesh is checked for consistency and missing boundaries will be created.

References createNeighbourInfos(), dim(), GIMLI::BaseEntity::id(), loadBinary(), loadBinaryV2(), and saveBinary().

Referenced by Mesh().

◆ loadBinary()

void GIMLI::Mesh::loadBinary ( const std::string & fileName )

Be carefull with interchanging binary meshs between 32-64bit architecture. Atm we save fixed int for counter and idx. We have to replace and test it with uint32 or uint16

References clear(), createCell(), dim(), nodeMarker(), setDimension(), setGeometry(), GIMLI::str(), and GIMLI::toStr().

Referenced by load().

◆ loadBinaryV2()

void GIMLI::Mesh::loadBinaryV2 ( const std::string & fbody )

Load mesh in binary format v.2.0. should be possible to interchange on all little endian platforms. Format see saveBinaryV2. If something goes wrong while reading, an exception is thrown.

References clear(), createCell(), data(), dim(), setDimension(), GIMLI::str(), and GIMLI::toStr().

Referenced by load().

◆ mapBoundaryMarker()

void GIMLI::Mesh::mapBoundaryMarker ( const std::map< int, int > & aMap )

Change all boundary marker that match bMap.first to bMap.second.

◆ neighboursKnown()

bool GIMLI::Mesh::neighboursKnown ( ) const

inline

Return true if createNeighbourInfos is called once

Referenced by operator=().

◆ nodeCenters()

R3Vector GIMLI::Mesh::nodeCenters ( ) const

DEPRECATED Return all node positions.

◆ nodeMarker()

IVector GIMLI::Mesh::nodeMarker ( ) const

DEPRECATED Return a vector of all node marker

References nodeMarkers().

Referenced by loadBinary().

◆ nodeMarkers()

IVector GIMLI::Mesh::nodeMarkers ( ) const

Return a vector of all node marker

Referenced by findNodesIdxByMarker(), and nodeMarker().

◆ nodes() [1/2]

std::vector< Node *> GIMLI::Mesh::nodes ( const IndexArray & ids ) const

Return vector of node from index list

◆ nodes() [2/2]

std::vector< Node *> GIMLI::Mesh::nodes ( const BVector & b ) const

Return a vector of nodes ptrs matching BVector b.

References GIMLI::find().

◆ operator=()

Mesh & GIMLI::Mesh::operator= ( const Mesh & mesh )

Copy assignment operator.

References addHoleMarker(), addRegionMarker(), cellAttributes(), clear(), createCell(), createNeighbourInfos(), createSecondaryNode(), dim(), exportDataMap(), holeMarker(), isGeometry(), neighboursKnown(), setCellAttributes(), setExportDataMap(), setGeometry(), setStaticGeometry(), and staticGeometry().

◆ positions() [1/2]

R3Vector GIMLI::Mesh::positions ( bool withSecNodes = false ) const

Return a vector of all node positions

Referenced by exportVTK(), and GIMLI::interpolate().

◆ positions() [2/2]

R3Vector GIMLI::Mesh::positions ( const IndexArray & idx ) const

Return a vector of node positions for an index vector

◆ prolongateEmptyCellsValues()

void GIMLI::Mesh::prolongateEmptyCellsValues	(	RVector &	vals,
		double	background = `-1.0`
	)		const

Prolongate the empty (lower than TOLERANCE.) cell values in vals from its neighbouring cells. This function is called recursively until all zero-attribute-values in vals are filled with an attribute greater than Zero. RVector vals need to be of size cellCount(). If Background is unequal -1.0 all empty values will be set to background.

References dim(), GIMLI::find(), GIMLI::BaseEntity::id(), GIMLI::Boundary::norm(), and smooth().

◆ rotate()

Mesh & GIMLI::Mesh::rotate ( const RVector3 & r )

Rotate mesh the with RVector3 r, r in radian, If you want to rotate in degree, use degToRad(const RVector3 & deg). And return a reference to the mesh (no copy)

◆ saveBinary()

int GIMLI::Mesh::saveBinary ( const std::string & fileName ) const

Be carefull with interchanging binary meshs between 32-64bit architecture. Atm we save fixed int for counter and idx. We have to replace and test it with uint32 or uint16

write vertex dummy-infos;

write cell dummy-infos

References dim(), dimension(), GIMLI::BaseEntity::id(), and GIMLI::Boundary::leftCell().

Referenced by load().

◆ saveBinaryV2()

void GIMLI::Mesh::saveBinaryV2 ( const std::string & fbody ) const

Save mesh in binary format v.2.0. should be possible to interchange on all little endian platforms. Contains all export data, marker an attribute. If something goes wrong while writing, an exception is thrown. sizes uint8 (1 byte), uint16 (2 byte), uint32 (4 byte), uint64 (8 byte) Format:

References dimension(), GIMLI::BaseEntity::id(), and GIMLI::Boundary::leftCell().

◆ scale() [1/2]

Mesh & GIMLI::Mesh::scale ( const RVector3 & s )

Scale the mesh with RVector3 s. And return a reference to the mesh (no copy)

◆ scale() [2/2]

Mesh& GIMLI::Mesh::scale ( const double & s )

inline

Scale the mesh with s. Shortcut for scale(RVector3(s,s,s))

◆ setBoundaryMarker()

void GIMLI::Mesh::setBoundaryMarker	(	const IndexArray &	ids,
		int	marker
	)

inline

DEPRECATED

◆ setBoundaryMarkers() [1/2]

void GIMLI::Mesh::setBoundaryMarkers	(	const IndexArray &	ids,
		int	marker
	)

Set the marker to all boundaries in index array.

◆ setBoundaryMarkers() [2/2]

void GIMLI::Mesh::setBoundaryMarkers ( const IVector & marker )

Set all cell marker the values in attribute.

◆ setCellAttributes() [1/2]

void GIMLI::Mesh::setCellAttributes ( const RVector & attribute )

Set all cell attributes to the valaues in vector attribute.

References GIMLI::toStr().

Referenced by createH2(), GIMLI::DCMultiElectrodeModelling::createJacobian(), GIMLI::DCMultiElectrodeModelling::mapERTModel(), and operator=().

◆ setCellAttributes() [2/2]

void GIMLI::Mesh::setCellAttributes ( double attribute )

Set all cell attributes to the scalar value: attribute

◆ setCellMarkers() [1/3]

void GIMLI::Mesh::setCellMarkers	(	const IndexArray &	ids,
		int	marker
	)

Set the cell marker of all indices in ids to marker.

Referenced by GIMLI::createGrid(), and createRefined_().

◆ setCellMarkers() [2/3]

void GIMLI::Mesh::setCellMarkers ( const IVector & marker )

Set all cell marker the values in attribute.

◆ setCellMarkers() [3/3]

void GIMLI::Mesh::setCellMarkers ( const RVector & attribute )

Set all cell marker the values in attribute (casting to int)

References GIMLI::str().

◆ setCommentString()

void GIMLI::Mesh::setCommentString ( const std::string & commentString )

inline

Set the comment for VTK Ascii export headline.

◆ setDataMap()

void GIMLI::Mesh::setDataMap ( const std::map< std::string, RVector > m )

inline

Replace the datamap by m

◆ setDimension()

void GIMLI::Mesh::setDimension ( uint dim )

inline

Set the dimension of the mesh. [Default = 2]

Referenced by create2DGrid(), create3DGrid(), createMeshByBoundaries(), createMeshByCellIdx(), createMeshByCells(), createNeighbourInfosCell_(), loadBinary(), and loadBinaryV2().

◆ setExportDataMap()

void GIMLI::Mesh::setExportDataMap ( const std::map< std::string, RVector > & eMap )

inline

DEPRECATED Set the full data map.

Referenced by operator=().

◆ setGeometry()

void GIMLI::Mesh::setGeometry ( bool b )

Mesh is marked as geometry definition or PLC so createNode will allways with check.

Referenced by loadBinary(), and operator=().

◆ setStaticGeometry()

void GIMLI::Mesh::setStaticGeometry ( bool stat )

If the mesh is static in geometry and shape some useful informations are cached. (cell sizes, boundary sizes, ...) For dynamic meshes, i.e., node positions can be moved, you have to set staticGeometry to false to avoid any caching.

References staticGeometry_.

Referenced by operator=().

◆ smooth()

void GIMLI::Mesh::smooth	(	bool	nodeMoving = `true`,
		bool	edgeSwapping = `true`,
		uint	smoothFunction = `1`,
		uint	smoothIteration = `10`
	)

Smooth the mesh via moving all free nodes into the average of all neighboring nodes. Repeat this smoothIteration times. There is currently only this smoothFunction. EdgeSwapping is deactivated.

References addRegionMarker(), createNeighbourInfos(), GIMLI::KDTreeWrapper::insert(), GIMLI::KDTreeWrapper::size(), GIMLI::toStr(), and GIMLI::KDTreeWrapper::tree().

Referenced by fillEmptyCells(), and prolongateEmptyCellsValues().

◆ staticGeometry()

bool GIMLI::Mesh::staticGeometry ( ) const

inline

Return true if this mesh have static geometry. [Default=True]

Referenced by operator=().

◆ swapCoordinates()

void GIMLI::Mesh::swapCoordinates	(	Index	i,
		Index	j
	)

Swap coordinate i with j for i and j lower then dimension of the mesh

◆ transform()

template<class Matrix >

Mesh& GIMLI::Mesh::transform ( const Matrix & mat )

inline

apply a 4x4 transformation matrix to the whole mesh

References GIMLI::load().

◆ translate()

Mesh & GIMLI::Mesh::translate ( const RVector3 & t )

Translate the mesh with RVector3 t. And return a reference to the mesh (no copy)

Member Data Documentation

◆ staticGeometry_

bool GIMLI::Mesh::staticGeometry_

protected

A static geometry mesh caches geometry informations.

Referenced by boundarySizedNormals(), boundarySizes(), cellSizes(), cellToBoundaryInterpolation(), deleteCells(), and setStaticGeometry().

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Constructor & Destructor Documentation

◆ Mesh() [1/3]

◆ Mesh() [2/3]

◆ Mesh() [3/3]

◆ ~Mesh()

Member Function Documentation

◆ addData()

◆ addExportData()

◆ addHoleMarker()

◆ addRegionMarker()

◆ addVTUPiece_()

◆ boundaries() [1/3]

◆ boundaries() [2/3]

◆ boundaries() [3/3]

◆ boundaryCenters()

◆ boundaryDataToCellGradient()

◆ boundaryMarker()

◆ boundaryMarkers()

◆ boundarySizedNormals()

◆ boundarySizes()

◆ cellAttributes()

◆ cellCenters()

◆ cellDataToBoundaryGradient() [1/2]

◆ cellDataToBoundaryGradient() [2/2]

◆ cellMarkers()

◆ cells() [1/2]

◆ cells() [2/2]

◆ cellSizes()

◆ cellToBoundaryInterpolation()

◆ cleanNeighbourInfos()

◆ clear()

◆ clearExportData()

◆ commentString()

◆ copyBoundary()

◆ copyCell()

◆ create2DGrid()

◆ create3DGrid()

◆ createBoundary()

◆ createCell() [1/2]

◆ createCell() [2/2]

◆ createGrid() [1/3]

◆ createGrid() [2/3]

◆ createGrid() [3/3]

◆ createH2()

◆ createHull()

◆ createMeshByBoundaries()

◆ createMeshByCellIdx() [1/2]

◆ createMeshByCellIdx() [2/2]

◆ createMeshByCells()

◆ createMeshByMarker()

◆ createNeighbourInfos()

◆ createNeighbourInfosCell_()

◆ createNodeGC_()

◆ createNodeWithCheck()

◆ createP2()

◆ createRefined_()

◆ createSecondaryNode()

◆ createSubMesh() [1/3]

◆ createSubMesh() [2/3]

◆ createSubMesh() [3/3]

◆ data()

◆ dataInfo()

◆ dataMap()

◆ deleteCells()

◆ dim()

◆ dimension()

◆ divergence()

◆ exportBoundaryVTU()

◆ exportData()

◆ exportDataMap()

◆ exportMidCellValue()

◆ exportVTK() [1/3]

◆ exportVTK() [2/3]

◆ exportVTK() [3/3]

◆ exportVTU()

◆ fillEmptyCells()
