GIMLI::DCSRMultiElectrodeModelling Class Reference
+ Inheritance diagram for GIMLI::DCSRMultiElectrodeModelling:

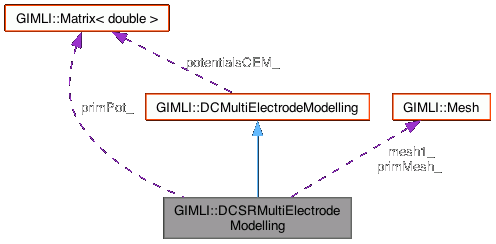

+ Collaboration diagram for GIMLI::DCSRMultiElectrodeModelling:

Public Member Functions

 DCSRMultiElectrodeModelling (bool verbose=false)

 DCSRMultiElectrodeModelling (Mesh &mesh, bool verbose=false)

 DCSRMultiElectrodeModelling (Mesh &mesh, DataContainerERT &dataContainer, bool verbose=false)

virtual void calculateK (const std::vector< ElectrodeShape * > &eA, const std::vector< ElectrodeShape * > &eB, RMatrix &solutionK, int kIdx)

void setPrimaryPotFileBody (const std::string &primPotFileBody)

void setPrimaryPotential (RMatrix &primPot)

RMatrixprimaryPotential ()

void setPrimaryMesh (Mesh &mesh)

void setPrimaryMesh (const std::string &meshname)

MeshprimaryMesh ()

virtual void preCalculate (const std::vector< ElectrodeShape * > &eA, const std::vector< ElectrodeShape * > &eB)

- Public Member Functions inherited from GIMLI::DCMultiElectrodeModelling
 DCMultiElectrodeModelling (bool verbose=false)

 DCMultiElectrodeModelling (Mesh &mesh, bool verbose=false)

 DCMultiElectrodeModelling (DataContainerERT &dataContainer, bool verbose=false)

 DCMultiElectrodeModelling (Mesh &mesh, DataContainerERT &dataContainer, bool verbose=false)

void assembleStiffnessMatrixDCFEMByPass (RSparseMatrix &S)

void assembleStiffnessMatrixDCFEMByPass (CSparseMatrix &S)

virtual void createJacobian (const RVector &model)

virtual void createConstraints ()

DataContainerERTdataContainer () const

virtual RVector createDefaultStartModel ()

void mapERTModel (const CVector &model, Complex background)

void mapERTModel (const RVector &model, double background)

virtual RVector response (const RVector &model)

RVector response (const RVector &model, double background)

void createCurrentPattern (std::vector< ElectrodeShape * > &eA, std::vector< ElectrodeShape * > &eB, bool reciprocity)

virtual void calculate (DataMap &dMap)

virtual void calculate (DataContainerERT &data, bool reciprocity=false)

virtual void calculate (const std::vector< ElectrodeShape * > &eA, const std::vector< ElectrodeShape * > &eB)

virtual void calculateK (const std::vector< ElectrodeShape * > &eA, const std::vector< ElectrodeShape * > &eB, CMatrix &solutionK, int kIdx)

template<class ValueType >
void calculateKAnalyt (const std::vector< ElectrodeShape * > &eA, const std::vector< ElectrodeShape * > &eB, Matrix< ValueType > &solutionK, double k, int kIdx) const

void setTopography (bool topography)

bool topography () const

bool neumann () const

void setComplex (bool c)

bool complex () const

void setDipoleCurrentPattern (bool dipole)

bool dipoleCurrentPattern () const

void setAnalytical (bool ana)

bool analytical () const

void collectSubPotentials (RMatrix &subSolutions)

const std::map< Index, Index > & currentPatternIdxMap () const

void setBypassMapFile (const std::string &fileName)

void setkValues (const RVector &v)

const RVectorkValues () const

void setWeights (const RVector &v)

const RVectorweights () const

const std::vector< ElectrodeShape *> & electrodes () const

void setContactImpedances (const RVector &zi)

virtual RVector calcGeometricFactor (const DataContainerERT &data, Index nModel=0)

void setSingValue (bool s=true)

bool isSetSingValue () const

- Public Member Functions inherited from GIMLI::ModellingBase
 ModellingBase (bool verbose=false)

 ModellingBase (DataContainer &dataContainer, bool verbose=false)

 ModellingBase (const Mesh &mesh, bool verbose=false)

 ModellingBase (const Mesh &mesh, DataContainer &dataContainer, bool verbose=false)

void setVerbose (bool verbose)

bool verbose () const

virtual RVector response_mt (const RVector &model, Index i=0) const

RVector operator() (const RVector &model)

void setData (DataContainer &data)

DataContainerdata () const

virtual RVector startModel ()

virtual void setStartModel (const RVector &startModel)

void setMesh (const Mesh &mesh, bool ignoreRegionManager=false)

Meshmesh ()

void createRefinedForwardMesh (bool refine=true, bool pRefine=false)

void deleteMesh ()

virtual void setJacobian (MatrixBase *J)

virtual void createJacobian (const RVector &model, const RVector &resp)

virtual void createJacobian_mt (const RVector &model, const RVector &resp)

virtual void initJacobian ()

MatrixBasejacobian ()

MatrixBasejacobian () const

virtual RMatrixjacobianRef () const

virtual RMatrixjacobianRef ()

virtual void clearJacobian ()

virtual void setConstraints (MatrixBase *C)

virtual void clearConstraints ()

virtual void initConstraints ()

virtual MatrixBaseconstraints ()

virtual MatrixBaseconstraints () const

virtual RSparseMapMatrixconstraintsRef () const

virtual RSparseMapMatrixconstraintsRef ()

const RMatrixsolution () const

void mapModel (const RVector &model, double background=0)

RVector createMappedModel (const RVector &model, double background=-1) const

void setRegionManager (RegionManager *reg)

const RegionManagerregionManager () const

RegionManagerregionManager ()

RegionManagerregionManagerRef ()

bool verbose ()

Regionregion (int marker)

RVector createStartModel ()

RVector createStartVector ()

void initRegionManager ()

void setThreadCount (Index nThreads)

Index threadCount () const

void setMultiThreadJacobian (Index nThreads)

Index multiThreadJacobian () const


Protected Member Functions

virtual void updateMeshDependency_ ()

virtual void updateDataDependency_ ()

void checkPrimpotentials_ (const std::vector< ElectrodeShape * > &eA, const std::vector< ElectrodeShape * > &eB)

- Protected Member Functions inherited from GIMLI::DCMultiElectrodeModelling
template<class ValueType >
void calculateK_ (const std::vector< ElectrodeShape * > &eA, const std::vector< ElectrodeShape * > &eB, Matrix< ValueType > &solutionK, int kIdx)

template<class ValueType >
void assembleStiffnessMatrixDCFEMByPass_ (SparseMatrix< ValueType > &S)

template<class ValueType >
DataMap response_ (const Vector< ValueType > &model, ValueType background)

template<class ValueType >
Matrix< ValueType > * prepareJacobianT_ (const Vector< ValueType > &model)

RMatrixprepareJacobian_ (const RVector &model)

CMatrixprepareJacobian_ (const CVector &model)

void createJacobian_ (const RVector &model, const RMatrix &u, RMatrix *J)

void createJacobian_ (const CVector &model, const CMatrix &u, CMatrix *J)

virtual void deleteMeshDependency_ ()

virtual void searchElectrodes_ ()

- Protected Member Functions inherited from GIMLI::ModellingBase
void setMesh_ (const Mesh &mesh, bool update=true)


Protected Attributes

std::string primPotFileBody_

bool primPotOwner_

RMatrixprimPot_

bool primMeshOwner_

MeshprimMesh_

Mesh mesh1_

- Protected Attributes inherited from GIMLI::DCMultiElectrodeModelling
MatrixBasesubSolutions_

bool complex_

bool JIsRMatrix_

bool analytical_

bool topography_

bool neumannDomain_

bool subpotOwner_

bool lastIsReferenz_

bool setSingValue_

std::string byPassFile_

RVector kValues_

RVector weights_

double surfaceZ_

IndexArray calibrationSourceIdx_

IndexArray bypassNodeIdx_

std::vector< ElectrodeShape *> electrodes_

ElectrodeShapeelectrodeRef_

std::vector< ElectrodeShape *> passiveCEM_

RVector3 sourceCenterPos_

bool buildCompleteElectrodeModel_

bool dipoleCurrentPattern_

std::map< Index, Index > currentPatternIdxMap_

RMatrix potentialsCEM_

RVector vContactImpedance_

DataMapprimDataMap_

- Protected Attributes inherited from GIMLI::ModellingBase
Meshmesh_

DataContainerdataContainer_

MatrixBasejacobian_

bool ownJacobian_

MatrixBaseconstraints_

bool ownConstraints_

RMatrix solutions_

RVector startModel_

bool verbose_

bool regionManagerInUse_

bool ownRegionManager_

Index nThreads_

Index nThreadsJacobian_


Member Function Documentation

◆ checkPrimpotentials_()

void GIMLI::DCSRMultiElectrodeModelling::checkPrimpotentials_ ( const std::vector< ElectrodeShape * > &  eA,
const std::vector< ElectrodeShape * > &  eB
)
protected

First check if primPot can be recovered by loading binary matrix

check for sizes here!!!

no binary matrix so calculate if topography present and no alternativ filename given

First check ready!

now check if all necessary primary potentials loaded or calculated (topography). On demand load from single file or calculate analytically

** primary potential vector is unknown

** primary potential file body is NOT_DEFINED so we try to determine ourself

** primary potential file body is given so we load it

** load 3D potential

else load 2d pot

else load pot

if primPot[potID] == 0

for each currentPattern

References GIMLI::DCMultiElectrodeModelling::calculate(), GIMLI::Mesh::createP2(), GIMLI::Stopwatch::duration(), GIMLI::Vector< ValueType >::fill(), GIMLI::interpolate(), GIMLI::load(), GIMLI::loadMatrixSingleBin(), GIMLI::Matrix< ValueType >::rowFlag(), GIMLI::ModellingBase::setMesh(), GIMLI::Mesh::showInfos(), and GIMLI::toStr().

◆ preCalculate()

void GIMLI::DCSRMultiElectrodeModelling::preCalculate ( const std::vector< ElectrodeShape * > &  eA,
const std::vector< ElectrodeShape * > &  eB
)
virtual

check for valid primary potentials, calculate analytical or numerical if nessecary

Reimplemented from GIMLI::DCMultiElectrodeModelling.

References GIMLI::Matrix< ValueType >::rows(), and GIMLI::toStr().
