Inheritance diagram for GIMLI::Inversion< ModelValType >:

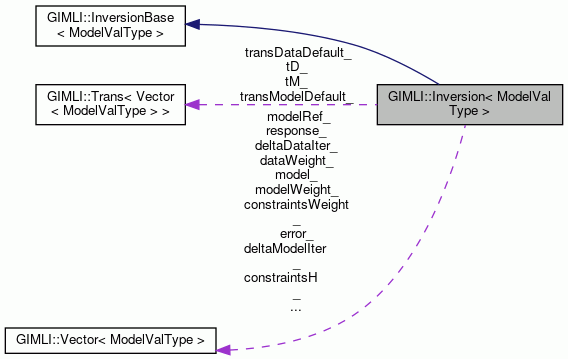

Collaboration diagram for GIMLI::Inversion< ModelValType >:

Public Types
typedef Vector< ModelValType >	Vec

typedef Vector< ModelValType >	ModelVector

Public Types inherited from GIMLI::InversionBase< ModelValType >
typedef Vector< ModelValType >	ModelVector

Public Member Functions
	Inversion (bool verbose=false, bool dosave=false)

	Inversion (ModellingBase &forward, bool verbose=false, bool dosave=false)

	Inversion (const Vec &data, ModellingBase &forward, bool verbose=false, bool dosave=false)

	Inversion (const Vec &data, ModellingBase &forward, Trans< Vec > &transData, bool verbose=true, bool dosave=false)

	Inversion (const Vec &data, ModellingBase &forward, Trans< Vec > &transData, Trans< Vec > &transModel, bool verbose=true, bool dosave=false)

virtual	~Inversion ()

void	setData (const Vec &data)

const Vec &	data () const

void	setRelativeError (const Vec &e)

void	setRelativeError (double relerr)

void	setAbsoluteError (const Vec &abserr)

void	setAbsoluteError (double abserr)

void	setError (const Vec &err, bool isRelative=true)

void	setError (double err, bool isRelative=true)

const Vec &	error () const

void	checkError ()

Vec	errorDefault_ ()

void	setForwardOperator (ModellingBase &forward)

ModellingBase *	forwardOperator ()

ModellingBase *	fop ()

void	setTransData (Trans< Vec > &tD)

Trans< Vec > &	transData ()

void	setTransModel (Trans< Vec > &tM)

Trans< Vec > &	transModel ()

uint	constraintsCount () const

uint	dataCount () const

void	setVerbose (bool verbose)

bool	verbose () const

void	setDoSave (bool d)

bool	doSave () const

void	saveModelHistory (bool doSaveModelHistory)

void	setLineSearch (bool linesearch)

bool	lineSearch () const

void	setBlockyModel (bool isBlocky)

bool	blockyModel () const

void	setRobustData (bool isRobust)

bool	robustData () const

void	setLambda (double lambda)

double	lambda () const

double	getLambda () const

void	setLambdaFactor (double lambdaFactor)

double	lambdaFactor () const

void	setLambdaMinimum (double l)

double	lambdaMinimum () const

void	setLocalRegularization (bool localReg)

bool	localRegularization () const

void	setOptimizeLambda (bool opt)

bool	optimizeLambda () const

void	setMaxIter (int maxiter)

int	maxIter () const

void	setMaxCGLSIter (int iter)

int	maxCGLSIter () const

void	setCGLSTolerance (double tol)

double	maxCGLSTolerance () const

uint	iter () const

bool	isRunning () const

void	abort ()

void	stopAtChi1 (bool stopAtChi1)

void	setDeltaPhiAbortPercent (double dPhi)

double	deltaPhiAbortPercent () const

void	setMarquardtScheme (double lambdaFactor=0.8)

void	checkTransFunctions ()

void	checkConstraints ()

void	checkJacobian (bool force=false)

void	setRecalcJacobian (bool recalc)

bool	recalcJacobian () const

void	setBroydenUpdate (bool broydenUpdate)

bool	broydenUpdate () const

void	setModel (const Vec &model)

const ModelVector &	model () const

void	setReferenceModel (const Vec &model)

void	setResponse (const Vec &response)

void	setConstraintsH (const Vec &constraintsH)

const Vec &	response () const

Vec	getIRLS () const

void	setCWeight (const Vec &cWeight)

const Vec &	cWeight () const

void	setMWeight (const Vec &mweight)

const Vec &	mWeight () const

void	robustWeighting ()

void	constrainBlocky ()

void	echoStatus () const

void	echoStatus (const Vec &response, const Vec &model, const std::string &xtra="") const

Vec	modelCellResolution (int iModel)

Vec	modelCellResolution (const RVector3 &pos)

RMatrix	modelResolutionMatrix ()

RVector	roughness (const RVector &model) const

RVector	pureRoughness (const RVector &model) const

RVector	roughness () const

double	getPhiD (const Vec &response) const

double	getPhiM (const Vec &model) const

double	getPhi (const Vec &model, const Vec &response) const

double	getPhiD () const

double	getPhiM () const

double	getPhi () const

double	getChi2 () const

double	getChi2 (const Vec &response) const

double	chi2 () const

double	absrms () const

double	relrms () const

double	linesearch (const Vec &modelNew, const Vec &responseNew) const

double	linesearchQuad (const Vec &modelNew, const Vec &responseNew, const Vec &modelQuad, const Vec &responseQuad, double tauquad) const

const std::vector< RVector > &	modelHistory () const

Vec	invSubStep (const Vec &rhs)

Vec	optLambda (const Vec &deltaData, const Vec &deltaModel0)

bool	oneStep ()
	!! h-variante More...

const Vec &	invert (const Vec &data)

const Vec &	start ()

const Vec &	run ()

Vec	runChi1 (double acc=0.01, int maxiter=50)

const RVector &	modelWeight () const

const RVector &	modelRef () const

const RVector &	dataWeight () const

const RVector &	deltaDataIter () const

const RVector &	deltaModelIter () const

IPCClientSHM &	ipc ()

void	reset ()

Public Member Functions inherited from GIMLI::InversionBase< ModelValType >
	InversionBase ()

virtual	~InversionBase ()

Protected Member Functions
void	init_ ()

Protected Attributes
Vec	data_

ModellingBase *	forward_

Trans< Vec > *	tD_

Trans< Vec > *	tM_

Trans< Vec > *	transModelDefault_

Trans< Vec > *	transDataDefault_

bool	verbose_

bool	dosave_

bool	saveModelHistory_

Vec	error_

Vec	response_

Vec	model_

Vec	modelRef_

Vec	constraintsH_

Vec	constraintsWeight_

Vec	modelWeight_

Vec	dataWeight_

Vec	deltaDataIter_

Vec	deltaModelIter_

int	maxiter_

int	iter_

int	maxCGLSIter_

double	lambda_

double	lambdaFactor_

double	lambdaMin_

double	dPhiAbortPercent_

double	CGLStol_

bool	isBlocky_

bool	isRobust_

bool	isRunning_

bool	useLinesearch_

bool	optimizeLambda_

bool	abort_

bool	stopAtChi1_

bool	doBroydenUpdate_

bool	localRegularization_

bool	haveReferenceModel_

bool	recalcJacobian_

bool	jacobiNeedRecalc_

bool	activateFillConstraintsWeight_

bool	fixError_

std::vector< RVector >	modelHist_

IPCClientSHM	ipc_

Detailed Description

template<class ModelValType>
class GIMLI::Inversion< ModelValType >

Inversion template using a Generalized Minimization Approach, atm fixed to Gauss-Newton solver Inversion(bool verbose, bool dosave Inversion(RVector data, FOP f, bool verbose, bool dosave Inversion(RVector data, FOP f, transData, transModel, bool verbose, bool dosave

Constructor & Destructor Documentation

◆ Inversion() [1/5]

template<class ModelValType>

GIMLI::Inversion< ModelValType >::Inversion	(	bool	verbose = `false`,
		bool	dosave = `false`
	)

inline

Minimal constructor. verbose – gives some output and status information about the inversion progress; dosave – advanced debuging, saves alot of stuff and temporary data

References GIMLI::Inversion< ModelValType >::init_().

Referenced by GIMLI::Inversion< ModelValType >::~Inversion().

◆ Inversion() [2/5]

template<class ModelValType>

GIMLI::Inversion< ModelValType >::Inversion	(	ModellingBase &	forward,
		bool	verbose = `false`,
		bool	dosave = `false`
	)

inline

Contructor for forward operator only

References GIMLI::Inversion< ModelValType >::init_(), and GIMLI::Inversion< ModelValType >::setForwardOperator().

◆ Inversion() [3/5]

template<class ModelValType>

GIMLI::Inversion< ModelValType >::Inversion	(	const Vec &	data,
		ModellingBase &	forward,
		bool	verbose = `false`,
		bool	dosave = `false`
	)

inline

Usual constructor. data – vector of the given data; forward – the associated forward operator

References GIMLI::Inversion< ModelValType >::init_(), GIMLI::Inversion< ModelValType >::setData(), and GIMLI::Inversion< ModelValType >::setForwardOperator().

◆ Inversion() [4/5]

template<class ModelValType>

GIMLI::Inversion< ModelValType >::Inversion	(	const Vec &	data,
		ModellingBase &	forward,
		Trans< Vec > &	transData,
		bool	verbose = `true`,
		bool	dosave = `false`
	)

inline

Intermediate constructor including transforms and data transformation function

References GIMLI::Inversion< ModelValType >::init_(), GIMLI::Inversion< ModelValType >::setData(), GIMLI::Inversion< ModelValType >::setForwardOperator(), and GIMLI::Inversion< ModelValType >::setTransData().

◆ Inversion() [5/5]

template<class ModelValType>

GIMLI::Inversion< ModelValType >::Inversion	(	const Vec &	data,
		ModellingBase &	forward,
		Trans< Vec > &	transData,
		Trans< Vec > &	transModel,
		bool	verbose = `true`,
		bool	dosave = `false`
	)

inline

Full constructor including transforms. transData – data transformation function; transModel – model transformation function

References GIMLI::Inversion< ModelValType >::init_(), GIMLI::Inversion< ModelValType >::setData(), GIMLI::Inversion< ModelValType >::setForwardOperator(), GIMLI::Inversion< ModelValType >::setTransData(), and GIMLI::Inversion< ModelValType >::setTransModel().

◆ ~Inversion()

template<class ModelValType>

virtual GIMLI::Inversion< ModelValType >::~Inversion ( )

inlinevirtual

Destructor. Frees allocated memory

References GIMLI::inv(), and GIMLI::Inversion< ModelValType >::Inversion().

Member Function Documentation

◆ abort()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::abort ( )

inlinevirtual

Force abort at next iteration

Implements GIMLI::InversionBase< ModelValType >.

◆ absrms()

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::absrms ( ) const

inline

Return last absolute RMS misfit

◆ checkConstraints()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::checkConstraints ( )

inline

Create constraints, check and compare size of constraint matrix with model/boundary control

References GIMLI::MatrixBase::cols(), GIMLI::Vector< ValueType >::resize(), and GIMLI::MatrixBase::rows().

Referenced by GIMLI::Inversion< ModelValType >::run().

◆ checkError()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::checkError ( )

inline

Validate the data error. This check will be called at every new run or change of the error; Check size and content unequal to zero. If problems found, warn and set the data error to errorDefault_()

References GIMLI::Inversion< ModelValType >::errorDefault_(), and GIMLI::Inversion< ModelValType >::fixError_.

Referenced by GIMLI::Inversion< ModelValType >::robustWeighting(), GIMLI::Inversion< ModelValType >::run(), and GIMLI::Inversion< ModelValType >::setRelativeError().

◆ checkJacobian()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::checkJacobian ( bool force = false )

inline

Check size of Jacobian matrix against data and model number

References GIMLI::MatrixBase::cols(), GIMLI::ModellingBase::createJacobian(), GIMLI::Stopwatch::duration(), GIMLI::ModellingBase::jacobian(), and GIMLI::MatrixBase::rows().

Referenced by GIMLI::Inversion< ModelValType >::run().

◆ checkTransFunctions()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::checkTransFunctions ( )

inline

Check if transfunctions are valid, set default if no transfunctions are given or override given functions by regionManager.transfunctions if available

References GIMLI::Inversion< ModelValType >::setTransModel().

Referenced by GIMLI::Inversion< ModelValType >::run().

◆ chi2()

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::chi2 ( ) const

inlinevirtual

Return last chi-squared data misfit

Implements GIMLI::InversionBase< ModelValType >.

References GIMLI::Inversion< ModelValType >::getPhiD().

Referenced by GIMLI::Inversion< ModelValType >::echoStatus(), and GIMLI::Inversion< ModelValType >::runChi1().

◆ constrainBlocky()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::constrainBlocky ( )

inline

Apply blocky model constraints (see also setBlockyModel)

References GIMLI::getIRLSWeights(), and GIMLI::Inversion< ModelValType >::setCWeight().

Referenced by GIMLI::Inversion< ModelValType >::run().

◆ constraintsCount()

template<class ModelValType>

uint GIMLI::Inversion< ModelValType >::constraintsCount ( ) const

inline

Return number of constraints

◆ cWeight()

template<class ModelValType>

const Vec& GIMLI::Inversion< ModelValType >::cWeight ( ) const

inlinevirtual

Return reference to the current constraints weight vector

Implements GIMLI::InversionBase< ModelValType >.

Referenced by GIMLI::Inversion< ModelValType >::setCWeight().

◆ data()

template<class ModelValType>

const Vec& GIMLI::Inversion< ModelValType >::data ( ) const

inline

Get data vector

Referenced by GIMLI::Inversion< ModelValType >::invSubStep(), and GIMLI::Inversion< ModelValType >::setData().

◆ dataCount()

template<class ModelValType>

uint GIMLI::Inversion< ModelValType >::dataCount ( ) const

inline

Return number of data

◆ echoStatus() [1/2]

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::echoStatus ( ) const

inline

Shortcut for echoStatus(response_, model_).

References GIMLI::Inversion< ModelValType >::echoStatus().

Referenced by GIMLI::Inversion< ModelValType >::echoStatus(), GIMLI::Inversion< ModelValType >::linesearch(), and GIMLI::Inversion< ModelValType >::oneStep().

◆ echoStatus() [2/2]

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::echoStatus	(	const Vec &	response,
		const Vec &	model,
		const std::string &	xtra = `""`
	)		const

inline

Echo PhiD/PhiM/Phi and Chi^2 for given model and response

References GIMLI::Inversion< ModelValType >::chi2(), GIMLI::Inversion< ModelValType >::getPhi(), GIMLI::Inversion< ModelValType >::getPhiD(), and GIMLI::Inversion< ModelValType >::getPhiM().

◆ error()

template<class ModelValType>

const Vec& GIMLI::Inversion< ModelValType >::error ( ) const

inline

Old vector error setter still fixed to relative error, should not be used due to ambiguity

Old scalar error setter still fixed to relative error, should not be used due to ambiguity

Return the used data error

◆ errorDefault_()

template<class ModelValType>

Vec GIMLI::Inversion< ModelValType >::errorDefault_ ( )

inline

Return a copy of the default data error array, [ Relative data error of 1% ]

Referenced by GIMLI::Inversion< ModelValType >::checkError().

◆ fop()

template<class ModelValType>

ModellingBase* GIMLI::Inversion< ModelValType >::fop ( )

inline

Return forward operator. Shortcut for forwardOperator()

References GIMLI::Inversion< ModelValType >::forwardOperator().

◆ forwardOperator()

template<class ModelValType>

ModellingBase* GIMLI::Inversion< ModelValType >::forwardOperator ( )

inlinevirtual

Return forward operator.

Implements GIMLI::InversionBase< ModelValType >.

Referenced by GIMLI::Inversion< ModelValType >::fop().

◆ getChi2() [1/2]

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::getChi2 ( ) const

inline

Return the chi-squared data misfit DEPRECATED wrong nameing scheme

References GIMLI::Inversion< ModelValType >::getPhiD().

Referenced by GIMLI::Inversion< ModelValType >::runChi1().

◆ getChi2() [2/2]

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::getChi2 ( const Vec & response ) const

inline

Return the chi-squared data misfit for given forward response. DEPRECATED wrong nameing scheme

References GIMLI::Inversion< ModelValType >::getPhiD().

◆ getIRLS()

template<class ModelValType>

Vec GIMLI::Inversion< ModelValType >::getIRLS ( ) const

inline

Return IRLS function of roughness vector

References GIMLI::getIRLSWeights().

◆ getPhi() [1/2]

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::getPhi	(	const Vec &	model,
		const Vec &	response
	)		const

inline

Return total objective function (data OF plus lambda times model OF) DEPRECATED wrong nameing scheme

References GIMLI::Inversion< ModelValType >::getPhiD(), and GIMLI::Inversion< ModelValType >::getPhiM().

◆ getPhi() [2/2]

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::getPhi ( ) const

inline

Shortcut for getPhi(model_, response_) necessary ? DEPRECATED wrong nameing scheme

References GIMLI::Inversion< ModelValType >::getPhiD(), and GIMLI::Inversion< ModelValType >::getPhiM().

Referenced by GIMLI::Inversion< ModelValType >::echoStatus(), GIMLI::Inversion< ModelValType >::linesearch(), GIMLI::Inversion< ModelValType >::linesearchQuad(), and GIMLI::Inversion< ModelValType >::run().

◆ getPhiD() [1/2]

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::getPhiD ( const Vec & response ) const

inline

Return data objective function (sum of squared data-weighted misfit)

References GIMLI::dot(), and GIMLI::str().

◆ getPhiD() [2/2]

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::getPhiD ( ) const

inline

Shortcut for getPhiD(response_) necessary ? DEPRECATED wrong nameing scheme

References GIMLI::Inversion< ModelValType >::getPhiD().

Referenced by GIMLI::Inversion< ModelValType >::chi2(), GIMLI::Inversion< ModelValType >::echoStatus(), GIMLI::Inversion< ModelValType >::getChi2(), GIMLI::Inversion< ModelValType >::getPhi(), GIMLI::Inversion< ModelValType >::getPhiD(), GIMLI::Inversion< ModelValType >::linesearch(), GIMLI::Inversion< ModelValType >::oneStep(), GIMLI::Inversion< ModelValType >::optLambda(), and GIMLI::Inversion< ModelValType >::run().

◆ getPhiM() [1/2]

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::getPhiM ( const Vec & model ) const

inline

Return model objective function (squared model roughness)

References GIMLI::dot(), GIMLI::Inversion< ModelValType >::roughness(), and GIMLI::str().

◆ getPhiM() [2/2]

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::getPhiM ( ) const

inline

Shortcut for getPhiM(model_) necessary ? DEPRECATED wrong nameing scheme

References GIMLI::Inversion< ModelValType >::getPhiM().

Referenced by GIMLI::Inversion< ModelValType >::echoStatus(), GIMLI::Inversion< ModelValType >::getPhi(), GIMLI::Inversion< ModelValType >::getPhiM(), GIMLI::Inversion< ModelValType >::optLambda(), and GIMLI::Inversion< ModelValType >::run().

◆ init_()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::init_ ( )

inlineprotected

Internal initialization function, which is called from constructor. Set default paramater and allocate required memory

References GIMLI::Inversion< ModelValType >::fixError_.

Referenced by GIMLI::Inversion< ModelValType >::Inversion().

◆ invert()

template<class ModelValType >

const Vector< ModelValType > & GIMLI::Inversion< ModelValType >::invert ( const Vec & data )

Start the inversion with specific data.

Start inversion from starting model.

References GIMLI::Inversion< ModelValType >::reset(), GIMLI::Inversion< ModelValType >::run(), and GIMLI::Inversion< ModelValType >::setData().

Referenced by GIMLI::Inversion< ModelValType >::invSubStep().

◆ invSubStep()

template<class ModelValType>

Vec GIMLI::Inversion< ModelValType >::invSubStep ( const Vec & rhs )

inline

Compute model update by solving one inverse sub-step

Parameters

rhs	The right-hand-side vector of the system of equation

!! h-variante

References GIMLI::Inversion< ModelValType >::data(), GIMLI::Inversion< ModelValType >::invert(), GIMLI::ModellingBase::jacobian(), GIMLI::Inversion< ModelValType >::oneStep(), GIMLI::Inversion< ModelValType >::optLambda(), GIMLI::Inversion< ModelValType >::run(), and GIMLI::Inversion< ModelValType >::start().

◆ isRunning()

template<class ModelValType>

bool GIMLI::Inversion< ModelValType >::isRunning ( ) const

inlinevirtual

Return true if inversion is running

Implements GIMLI::InversionBase< ModelValType >.

◆ iter()

template<class ModelValType>

uint GIMLI::Inversion< ModelValType >::iter ( ) const

inlinevirtual

Return curent iteration number

Implements GIMLI::InversionBase< ModelValType >.

Referenced by GIMLI::Inversion< ModelValType >::runChi1(), and GIMLI::Inversion< ModelValType >::setMaxCGLSIter().

◆ lambdaMinimum()

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::lambdaMinimum ( ) const

inline

Return the minimum lambda value that can be reached if lambda factor is set.

◆ linesearch()

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::linesearch	(	const Vec &	modelNew,
		const Vec &	responseNew
	)		const

inline

Start with linear interpolation, followed by quadratic fit if linesearch parameter tau is lower than 0.03. Tries to return values between 0.03 and 1

rigorous minimization of the total objective function

parabolic line search using step 0, 1 and tauquad to fit parabola

too large

negative or nearly zero (stucked) -> use small step instead

only if not nearly one (which saves a forward run

References GIMLI::Inversion< ModelValType >::echoStatus(), GIMLI::Inversion< ModelValType >::getPhi(), GIMLI::Inversion< ModelValType >::getPhiD(), and GIMLI::Inversion< ModelValType >::linesearchQuad().

Referenced by GIMLI::Inversion< ModelValType >::oneStep(), and GIMLI::Inversion< ModelValType >::setLineSearch().

◆ linesearchQuad()

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::linesearchQuad	(	const Vec &	modelNew,
		const Vec &	responseNew,
		const Vec &	modelQuad,
		const Vec &	responseQuad,
		double	tauquad
	)		const

inline

Compute objective function for old (tau=0), new (tau=1) and another model

References GIMLI::Inversion< ModelValType >::getPhi().

Referenced by GIMLI::Inversion< ModelValType >::linesearch().

◆ localRegularization()

template<class ModelValType>

bool GIMLI::Inversion< ModelValType >::localRegularization ( ) const

inline

Return whether regularization is global or local (e.g. Marquardt method)

◆ model()

template<class ModelValType>

const ModelVector& GIMLI::Inversion< ModelValType >::model ( ) const

inlinevirtual

Return a const reference to the current model vector

Implements GIMLI::InversionBase< ModelValType >.

Referenced by GIMLI::Inversion< ModelValType >::runChi1(), GIMLI::Inversion< ModelValType >::setModel(), and GIMLI::Inversion< ModelValType >::setReferenceModel().

◆ modelCellResolution() [1/2]

template<class ModelValType>

Vec GIMLI::Inversion< ModelValType >::modelCellResolution ( int iModel )

inline

Compute model cell resolution (specific column of resolution matrix) by an LSCG solver (Guenther, 2004)

References GIMLI::ModellingBase::jacobian().

Referenced by GIMLI::Inversion< ModelValType >::modelCellResolution(), and GIMLI::Inversion< ModelValType >::modelResolutionMatrix().

◆ modelCellResolution() [2/2]

template<class ModelValType>

Vec GIMLI::Inversion< ModelValType >::modelCellResolution ( const RVector3 & pos )

inline

Compute cell resolution for closest cell to given position

References GIMLI::Inversion< ModelValType >::modelCellResolution().

◆ modelHistory()

template<class ModelValType>

const std::vector< RVector >& GIMLI::Inversion< ModelValType >::modelHistory ( ) const

inline

Return the single models for each iteration. For debugging.

References GIMLI::Inversion< ModelValType >::modelHist_.

◆ modelResolutionMatrix()

template<class ModelValType>

RMatrix GIMLI::Inversion< ModelValType >::modelResolutionMatrix ( )

inline

Compute whole resolution matrix by single cell resolutions

References GIMLI::Inversion< ModelValType >::modelCellResolution(), and GIMLI::Matrix< ValueType >::push_back().

◆ mWeight()

template<class ModelValType>

const Vec& GIMLI::Inversion< ModelValType >::mWeight ( ) const

inline

Return reference to the current model weight vector

◆ oneStep()

template<class Vec >

bool GIMLI::Inversion< Vec >::oneStep ( )

!! h-variante

One iteration step. Return true if the step can be calculated successfully else false is returned.

!! h-variante

full step possible;

normal line search parameter between 0.03 and 0.94

** temporary stuff

References GIMLI::Mesh::addExportData(), GIMLI::Mesh::cellAttributes(), GIMLI::Mesh::clearExportData(), GIMLI::ModellingBase::createJacobian(), GIMLI::Stopwatch::duration(), GIMLI::Inversion< ModelValType >::echoStatus(), GIMLI::Inversion< ModelValType >::getPhiD(), GIMLI::ModellingBase::jacobian(), GIMLI::Inversion< ModelValType >::linesearch(), GIMLI::Inversion< ModelValType >::optLambda(), GIMLI::Vector< ValueType >::resize(), GIMLI::Inversion< ModelValType >::roughness(), and GIMLI::toStr().

Referenced by GIMLI::Inversion< ModelValType >::invSubStep(), and GIMLI::Inversion< ModelValType >::run().

◆ optLambda()

template<class ModelValType >

Vector< ModelValType > GIMLI::Inversion< ModelValType >::optLambda	(	const Vec &	deltaData,
		const Vec &	deltaModel0
	)

Optimization of regularization parameter by L-curve

References GIMLI::Inversion< ModelValType >::getPhiD(), GIMLI::Inversion< ModelValType >::getPhiM(), GIMLI::ModellingBase::jacobian(), and GIMLI::Inversion< ModelValType >::roughness().

Referenced by GIMLI::Inversion< ModelValType >::invSubStep(), and GIMLI::Inversion< ModelValType >::oneStep().

◆ pureRoughness()

template<class ModelValType>

RVector GIMLI::Inversion< ModelValType >::pureRoughness ( const RVector & model ) const

inline

Return (C * m) , i.e. the pure (unweighted) roughness

◆ relrms()

template<class ModelValType>

double GIMLI::Inversion< ModelValType >::relrms ( ) const

inline

Return last relative RMS misfit

◆ reset()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::reset ( )

inline

Resets this inversion to the given startmodel.

References GIMLI::Inversion< ModelValType >::setModel(), and GIMLI::ModellingBase::startModel().

Referenced by GIMLI::Inversion< ModelValType >::invert(), and GIMLI::Inversion< ModelValType >::start().

◆ response()

template<class ModelValType>

const Vec& GIMLI::Inversion< ModelValType >::response ( ) const

inline

Return a reference to the current response vector

Referenced by GIMLI::Inversion< ModelValType >::setResponse().

◆ robustWeighting()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::robustWeighting ( )

inline

Call robust date reweighting (see also setRobustData)

References GIMLI::Inversion< ModelValType >::checkError(), and GIMLI::getIRLSWeights().

Referenced by GIMLI::Inversion< ModelValType >::run().

◆ roughness() [1/2]

template<class ModelValType>

RVector GIMLI::Inversion< ModelValType >::roughness ( const RVector & model ) const

inline

Return (C * m * m_w) * c_w

◆ roughness() [2/2]

template<class ModelValType>

RVector GIMLI::Inversion< ModelValType >::roughness ( ) const

inline

Shortcut for roughness for the current model vector

Referenced by GIMLI::Inversion< ModelValType >::getPhiM(), GIMLI::Inversion< ModelValType >::oneStep(), and GIMLI::Inversion< ModelValType >::optLambda().

◆ run()

template<class ModelValType >

const Vector< ModelValType > & GIMLI::Inversion< ModelValType >::run ( )

virtual

Start the inversion procedure from the last model and return the final model vector.

Run inversion with current model.

calculation of initial modelresponse

() clear the model history

validate and rebuild the data error if necessary

validate and rebuild the constraint matrix if necessary

compute roughness constraint and correct it for inter-region constraints

!!template

validate and rebuild the jacobian if necessary

Implements GIMLI::InversionBase< ModelValType >.

Referenced by GIMLI::Inversion< ModelValType >::invert(), GIMLI::Inversion< ModelValType >::invSubStep(), GIMLI::Inversion< ModelValType >::runChi1(), and GIMLI::Inversion< ModelValType >::start().

◆ runChi1()

template<class ModelValType>

Vec GIMLI::Inversion< ModelValType >::runChi1	(	double	acc = `0.01`,
		int	maxiter = `50`
	)

inline

Specialized run function that tries to reach a datafit chi^2=1 by varying the regularization paramater lambda

References GIMLI::Inversion< ModelValType >::chi2(), GIMLI::Inversion< ModelValType >::getChi2(), GIMLI::Inversion< ModelValType >::iter(), GIMLI::Inversion< ModelValType >::model(), GIMLI::Inversion< ModelValType >::run(), GIMLI::Inversion< ModelValType >::setLambda(), GIMLI::ModellingBase::setVerbose(), and GIMLI::Inversion< ModelValType >::stopAtChi1().

◆ saveModelHistory()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::saveModelHistory ( bool doSaveModelHistory )

inline

Set and get verbose behaviour

◆ setAbsoluteError() [1/2]

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setAbsoluteError ( const Vec & abserr )

inline

Set the absolute data error to the vector abserr

References GIMLI::Inversion< ModelValType >::setRelativeError().

Referenced by GIMLI::Inversion< ModelValType >::setAbsoluteError().

◆ setAbsoluteError() [2/2]

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setAbsoluteError ( double abserr )

inline

Set absolute data error to the scalar value abserr

References GIMLI::Inversion< ModelValType >::setAbsoluteError(), and GIMLI::Inversion< ModelValType >::setRelativeError().

◆ setBlockyModel()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setBlockyModel ( bool isBlocky )

inline

Set and get blocky model behaviour (by L1 reweighting of constraints)

◆ setBroydenUpdate()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setBroydenUpdate ( bool broydenUpdate )

inline

Enable/disable broyden update (which enforces scaling by transform function derivatives

◆ setCGLSTolerance()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setCGLSTolerance ( double tol )

inline

Set and get abort tolerance for cgls solver. -1 means default scaling [default]

◆ setConstraintsH()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setConstraintsH ( const Vec & constraintsH )

inline

Set constraint right-hand side by hand (very special cases, so be careful)

◆ setCWeight()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setCWeight ( const Vec & cWeight )

inline

Set the constraint weight (boundary control) vector

References GIMLI::Inversion< ModelValType >::cWeight().

Referenced by GIMLI::Inversion< ModelValType >::constrainBlocky().

◆ setData()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setData ( const Vec & data )

inlinevirtual

Set data vector

Implements GIMLI::InversionBase< ModelValType >.

References GIMLI::Inversion< ModelValType >::data().

Referenced by GIMLI::Inversion< ModelValType >::Inversion(), and GIMLI::Inversion< ModelValType >::invert().

◆ setDeltaPhiAbortPercent()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setDeltaPhiAbortPercent ( double dPhi )

inline

Set and get relative objective function decrease

◆ setDoSave()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setDoSave ( bool d )

inline

Set debug output

◆ setForwardOperator()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setForwardOperator ( ModellingBase & forward )

inlinevirtual

Set the forward operator and the model-transform-function derived from fop-regionManager if not set before.

why is this so strictly necessary???

Always use a region manager

Implements GIMLI::InversionBase< ModelValType >.

Referenced by GIMLI::Inversion< ModelValType >::Inversion().

◆ setLambda()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setLambda ( double lambda )

inlinevirtual

Set and get regularization parameter and its change over iteration

Implements GIMLI::InversionBase< ModelValType >.

Referenced by GIMLI::Inversion< ModelValType >::runChi1().

◆ setLambdaMinimum()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setLambdaMinimum ( double l )

inline

Set the minimum lambda value that can be reached if lambda factor is set. Default is 1.

◆ setLineSearch()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setLineSearch ( bool linesearch )

inline

Set and get line search

References GIMLI::Inversion< ModelValType >::linesearch().

◆ setLocalRegularization()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setLocalRegularization ( bool localReg )

inline

Set whether regularization is global or local (e.g. Marquardt method)

Referenced by GIMLI::Inversion< ModelValType >::setMarquardtScheme().

◆ setMarquardtScheme()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setMarquardtScheme ( double lambdaFactor = 0.8 )

inline

Marquardt scheme (local damping with decreasing regularization strength

no contribution of regularization to objective function

lambda is decreased towards zero

let the solution fully converge (important for statistics)

References GIMLI::Inversion< ModelValType >::setLocalRegularization(), and GIMLI::Inversion< ModelValType >::stopAtChi1().

◆ setMaxCGLSIter()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setMaxCGLSIter ( int iter )

inline

Set and get maximum iteration number for inverse sub step

References GIMLI::Inversion< ModelValType >::iter().

◆ setMaxIter()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setMaxIter ( int maxiter )

inlinevirtual

Set and get maximum iteration number

Implements GIMLI::InversionBase< ModelValType >.

◆ setModel()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setModel ( const Vec & model )

inlinevirtual

Set model vector . If you call run() the inversion starts with this model, otherwise it will start with fop.startModel().

Implements GIMLI::InversionBase< ModelValType >.

References GIMLI::Inversion< ModelValType >::model().

Referenced by GIMLI::Inversion< ModelValType >::reset(), and GIMLI::Inversion< ModelValType >::run().

◆ setMWeight()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setMWeight ( const Vec & mweight )

inline

Set the model weight vector

◆ setOptimizeLambda()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setOptimizeLambda ( bool opt )

inline

Set and get whether lambda is being optimized by Lcurve

◆ setRecalcJacobian()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setRecalcJacobian ( bool recalc )

inline

Define and find out whether Jacobian is recalculated in each iteration

◆ setReferenceModel()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setReferenceModel ( const Vec & model )

inlinevirtual

Set reference model vector

Implements GIMLI::InversionBase< ModelValType >.

References GIMLI::Inversion< ModelValType >::model().

◆ setRelativeError() [1/2]

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setRelativeError ( const Vec & e )

inline

Set the relative data error to the vector err.

References GIMLI::Inversion< ModelValType >::checkError().

Referenced by GIMLI::Inversion< ModelValType >::setAbsoluteError(), and GIMLI::Inversion< ModelValType >::setRelativeError().

◆ setRelativeError() [2/2]

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setRelativeError ( double relerr )

inline

Set relative data error to scalar error value relerr. If you force relerr == 0 here. Data will not corrected or weighted.

References GIMLI::Inversion< ModelValType >::fixError_, and GIMLI::Inversion< ModelValType >::setRelativeError().

◆ setResponse()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setResponse ( const Vec & response )

inline

Set current model response (e.g. to avoid time-consuming forward calculation, but be careful)

References GIMLI::Inversion< ModelValType >::response().

◆ setRobustData()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setRobustData ( bool isRobust )

inline

Set and get robust data weighting by L1 reweighting scheme

◆ setTransData()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setTransData ( Trans< Vec > & tD )

inlinevirtual

Set and get data transform. WARNING! we just store a reference to the trans .. U have to ensure that the trans is and stayes valid. TODO change this!!!

Implements GIMLI::InversionBase< ModelValType >.

Referenced by GIMLI::Inversion< ModelValType >::Inversion().

◆ setTransModel()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setTransModel ( Trans< Vec > & tM )

inlinevirtual

Set and get Model transform WARNING! we just store a reference to the trans .. U have to ensure that the trans is and stayes valid. TODO change this!!!

Implements GIMLI::InversionBase< ModelValType >.

Referenced by GIMLI::Inversion< ModelValType >::checkTransFunctions(), and GIMLI::Inversion< ModelValType >::Inversion().

◆ setVerbose()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::setVerbose ( bool verbose )

inline

Set verbose output

◆ start()

template<class ModelValType >

const Vector< ModelValType > & GIMLI::Inversion< ModelValType >::start ( )

Start the inversion procedure from starting model.

Start inversion from starting model.

References GIMLI::Inversion< ModelValType >::reset(), and GIMLI::Inversion< ModelValType >::run().

Referenced by GIMLI::Inversion< ModelValType >::invSubStep().

◆ stopAtChi1()

template<class ModelValType>

void GIMLI::Inversion< ModelValType >::stopAtChi1 ( bool stopAtChi1 )

inline

Define whether minimization stops at chi^2=1

References GIMLI::Inversion< ModelValType >::stopAtChi1().

Referenced by GIMLI::Inversion< ModelValType >::runChi1(), GIMLI::Inversion< ModelValType >::setMarquardtScheme(), and GIMLI::Inversion< ModelValType >::stopAtChi1().

Member Data Documentation

◆ fixError_

template<class ModelValType>

bool GIMLI::Inversion< ModelValType >::fixError_

protected

Set this to zero if u want to use absolute errors == zero

Referenced by GIMLI::Inversion< ModelValType >::checkError(), GIMLI::Inversion< ModelValType >::init_(), and GIMLI::Inversion< ModelValType >::setRelativeError().

◆ modelHist_

template<class ModelValType>

std::vector< RVector > GIMLI::Inversion< ModelValType >::modelHist_

protected

Hold old models, for debuging

Referenced by GIMLI::Inversion< ModelValType >::modelHistory(), and GIMLI::Inversion< ModelValType >::run().

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

template<class ModelValType> class GIMLI::Inversion< ModelValType >

Constructor & Destructor Documentation

◆ Inversion() [1/5]

◆ Inversion() [2/5]

◆ Inversion() [3/5]

◆ Inversion() [4/5]

◆ Inversion() [5/5]

◆ ~Inversion()

Member Function Documentation

◆ abort()

◆ absrms()

◆ checkConstraints()

◆ checkError()

◆ checkJacobian()

◆ checkTransFunctions()

◆ chi2()

◆ constrainBlocky()

◆ constraintsCount()

◆ cWeight()

◆ data()

◆ dataCount()

◆ echoStatus() [1/2]

◆ echoStatus() [2/2]

◆ error()

◆ errorDefault_()

◆ fop()

◆ forwardOperator()

◆ getChi2() [1/2]

◆ getChi2() [2/2]

◆ getIRLS()

◆ getPhi() [1/2]

◆ getPhi() [2/2]

◆ getPhiD() [1/2]

◆ getPhiD() [2/2]

◆ getPhiM() [1/2]

◆ getPhiM() [2/2]

◆ init_()

◆ invert()

◆ invSubStep()

◆ isRunning()

◆ iter()

◆ lambdaMinimum()

◆ linesearch()

◆ linesearchQuad()

◆ localRegularization()

◆ model()

◆ modelCellResolution() [1/2]

◆ modelCellResolution() [2/2]

◆ modelHistory()

◆ modelResolutionMatrix()

◆ mWeight()

◆ oneStep()

◆ optLambda()

◆ pureRoughness()

◆ relrms()

◆ reset()

◆ response()

◆ robustWeighting()

◆ roughness() [1/2]

◆ roughness() [2/2]

◆ run()

◆ runChi1()

◆ saveModelHistory()

◆ setAbsoluteError() [1/2]

◆ setAbsoluteError() [2/2]

◆ setBlockyModel()

◆ setBroydenUpdate()

◆ setCGLSTolerance()

◆ setConstraintsH()

◆ setCWeight()

◆ setData()

◆ setDeltaPhiAbortPercent()

◆ setDoSave()

◆ setForwardOperator()

◆ setLambda()

template<class ModelValType>
class GIMLI::Inversion< ModelValType >
