GIMLI::DC1dModelling Class Reference

DC (direct current) 1D modelling. More...

+ Inheritance diagram for GIMLI::DC1dModelling:

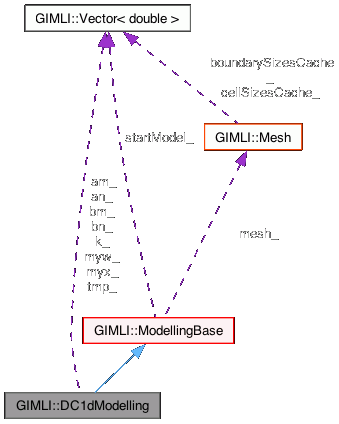

+ Collaboration diagram for GIMLI::DC1dModelling:

Public Member Functions

 DC1dModelling (size_t nlayers, const RVector &am, const RVector &an, const RVector &bm, const RVector &bn, bool verbose=false)

 DC1dModelling (size_t nlayers, const RVector &ab2, const RVector &mn2, bool verbose=false)

 DC1dModelling (size_t nlayers, DataContainer &data, bool verbose=false)

RVector response (const RVector &model)

RVector rhoa (const RVector &rho, const RVector &thk)

RVector kern1d (const RVector &lam, const RVector &rho, const RVector &h)

RVector pot1d (const RVector &R, const RVector &rho, const RVector &thk)

RVector getK ()

RVector geometricFactor ()

template<class Vec >
Vec rhoaT (const Vec &rho, const RVector &thk)

template<class Vec >
Vec kern1dT (const RVector &lam, const Vec &rho, const RVector &h)

template<class Vec >
Vec pot1dT (const RVector &R, const Vec &rho, const RVector &thk)

RVector createDefaultStartModel ()

- Public Member Functions inherited from GIMLI::ModellingBase
 ModellingBase (bool verbose=false)

 ModellingBase (DataContainer &dataContainer, bool verbose=false)

 ModellingBase (const Mesh &mesh, bool verbose=false)

 ModellingBase (const Mesh &mesh, DataContainer &dataContainer, bool verbose=false)

void setVerbose (bool verbose)

bool verbose () const

virtual RVector response_mt (const RVector &model, Index i=0) const

RVector operator() (const RVector &model)

void setData (DataContainer &data)

DataContainerdata () const

virtual RVector startModel ()

virtual void setStartModel (const RVector &startModel)

void setMesh (const Mesh &mesh, bool ignoreRegionManager=false)

Meshmesh ()

void createRefinedForwardMesh (bool refine=true, bool pRefine=false)

void deleteMesh ()

virtual void setJacobian (MatrixBase *J)

virtual void createJacobian (const RVector &model)

virtual void createJacobian (const RVector &model, const RVector &resp)

virtual void createJacobian_mt (const RVector &model, const RVector &resp)

virtual void initJacobian ()

MatrixBasejacobian ()

MatrixBasejacobian () const

virtual RMatrixjacobianRef () const

virtual RMatrixjacobianRef ()

virtual void clearJacobian ()

virtual void setConstraints (MatrixBase *C)

virtual void clearConstraints ()

virtual void initConstraints ()

virtual void createConstraints ()

virtual MatrixBaseconstraints ()

virtual MatrixBaseconstraints () const

virtual RSparseMapMatrixconstraintsRef () const

virtual RSparseMapMatrixconstraintsRef ()

const RMatrixsolution () const

void mapModel (const RVector &model, double background=0)

RVector createMappedModel (const RVector &model, double background=-1) const

void setRegionManager (RegionManager *reg)

const RegionManagerregionManager () const

RegionManagerregionManager ()

RegionManagerregionManagerRef ()

bool verbose ()

Regionregion (int marker)

RVector createStartModel ()

RVector createStartVector ()

void initRegionManager ()

void setThreadCount (Index nThreads)

Index threadCount () const

void setMultiThreadJacobian (Index nThreads)

Index multiThreadJacobian () const


Protected Member Functions

void init_ ()

void postprocess_ ()

- Protected Member Functions inherited from GIMLI::ModellingBase
virtual void deleteMeshDependency_ ()

virtual void updateMeshDependency_ ()

virtual void updateDataDependency_ ()

void setMesh_ (const Mesh &mesh, bool update=true)


Protected Attributes

size_t nlayers_

double meanrhoa_

RVector am_

RVector an_

RVector bm_

RVector bn_

RVector k_

RVector tmp_

RVector myx_

RVector myw_

- Protected Attributes inherited from GIMLI::ModellingBase
Meshmesh_

DataContainerdataContainer_

MatrixBasejacobian_

bool ownJacobian_

MatrixBaseconstraints_

bool ownConstraints_

RMatrix solutions_

RVector startModel_

bool verbose_

bool regionManagerInUse_

bool ownRegionManager_

Index nThreads_

Index nThreadsJacobian_


Detailed Description

DC (direct current) 1D modelling.

Classical DC 1D forward operator for given resistivities and thicknesses DC1dModelling(nlayers, ab2, mn2, verbose) DC1dModelling(nlayers, am, an, bm, bn, verbose) DC1dModelling(nlayers, dataContainer, verbose)

Constructor & Destructor Documentation

◆ DC1dModelling() [1/3]

GIMLI::DC1dModelling::DC1dModelling ( size_t  nlayers,
const RVector am,
const RVector an,
const RVector bm,
const RVector bn,
bool  verbose = false
)

General constructor using AM, AN, BM, BN, distances (as stored internally).

References GIMLI::createMesh1DBlock(), init_(), and GIMLI::ModellingBase::setMesh().

◆ DC1dModelling() [2/3]

GIMLI::DC1dModelling::DC1dModelling ( size_t  nlayers,
const RVector ab2,
const RVector mn2,
bool  verbose = false
)

constructor for classical Schlumberger sounding

References GIMLI::createMesh1DBlock(), init_(), and GIMLI::ModellingBase::setMesh().

◆ DC1dModelling() [3/3]

GIMLI::DC1dModelling::DC1dModelling ( size_t  nlayers,
DataContainer data,
bool  verbose = false
)

Member Function Documentation

◆ createDefaultStartModel()

RVector GIMLI::DC1dModelling::createDefaultStartModel ( )
virtual

Interface to define custom start model generators.

Reimplemented from GIMLI::ModellingBase.

Reimplemented in GIMLI::DC1dRhoModelling.

◆ init_()

void GIMLI::DC1dModelling::init_ ( )
protectedvirtual

init myw and myx

Reimplemented from GIMLI::ModellingBase.

References GIMLI::Vector< ValueType >::fill(), and GIMLI::Vector< ValueType >::resize().

Referenced by DC1dModelling().

◆ response()

RVector GIMLI::DC1dModelling::response ( const RVector model)
virtual

Returns an RVector of the 1dc response for model = [thickness_ 0, ..., thickness_(n-1), rho_0 .. rho_n]. For n = nlayers.

Reimplemented from GIMLI::ModellingBase.

Reimplemented in GIMLI::DC1dRhoModelling, and GIMLI::DC1dModellingC.

References GIMLI::toStr(), and GIMLI::z().
