Geophysical Inversion and Modeling Library  v1.0.12-3-g179296b4
GIMLI::PolynomialModelling Class Reference

Multidimensional polynomial modelling class. More...

+ Inheritance diagram for GIMLI::PolynomialModelling:

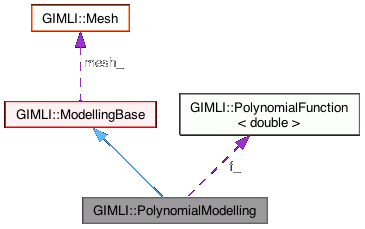

+ Collaboration diagram for GIMLI::PolynomialModelling:

Public Member Functions

 PolynomialModelling (uint dim, uint nCoeffizient, const std::vector< RVector3 > &referencePoints, const RVector &startModel)

virtual RVector response (const RVector &par)

virtual RVector startModel ()

const PolynomialFunction< double > & polynomialFunction () const

void setPascalsStyle (bool is)

void setSerendipityStyle (bool is)

void setPowCombinationTmp (int i)

- Public Member Functions inherited from GIMLI::ModellingBase
 ModellingBase (bool verbose=false)

 ModellingBase (DataContainer &dataContainer, bool verbose=false)

 ModellingBase (const Mesh &mesh, bool verbose=false)

 ModellingBase (const Mesh &mesh, DataContainer &dataContainer, bool verbose=false)

void setVerbose (bool verbose)

bool verbose () const

virtual RVector response_mt (const RVector &model, Index i=0) const

RVector operator() (const RVector &model)

void setData (DataContainer &data)

DataContainerdata () const

virtual RVector createDefaultStartModel ()

virtual void setStartModel (const RVector &startModel)

void setMesh (const Mesh &mesh, bool ignoreRegionManager=false)

Meshmesh ()

void createRefinedForwardMesh (bool refine=true, bool pRefine=false)

void deleteMesh ()

virtual void setJacobian (MatrixBase *J)

virtual void createJacobian (const RVector &model)

virtual void createJacobian (const RVector &model, const RVector &resp)

virtual void createJacobian_mt (const RVector &model, const RVector &resp)

virtual void initJacobian ()

MatrixBasejacobian ()

MatrixBasejacobian () const

virtual RMatrixjacobianRef () const

virtual RMatrixjacobianRef ()

virtual void clearJacobian ()

virtual void setConstraints (MatrixBase *C)

virtual void clearConstraints ()

virtual void initConstraints ()

virtual void createConstraints ()

virtual MatrixBaseconstraints ()

virtual MatrixBaseconstraints () const

virtual RSparseMapMatrixconstraintsRef () const

virtual RSparseMapMatrixconstraintsRef ()

const RMatrixsolution () const

void mapModel (const RVector &model, double background=0)

RVector createMappedModel (const RVector &model, double background=-1) const

void setRegionManager (RegionManager *reg)

const RegionManagerregionManager () const

RegionManagerregionManager ()

RegionManagerregionManagerRef ()

bool verbose ()

Regionregion (int marker)

RVector createStartModel ()

RVector createStartVector ()

void initRegionManager ()

void setThreadCount (Index nThreads)

Index threadCount () const

void setMultiThreadJacobian (Index nThreads)

Index multiThreadJacobian () const


Protected Attributes

uint dim_

std::vector< RVector3referencePoints_

PolynomialFunction< double > f_

bool pascalTriangle_

bool serendipityStyle_

uint powCombination_

- Protected Attributes inherited from GIMLI::ModellingBase
Meshmesh_

DataContainerdataContainer_

MatrixBasejacobian_

bool ownJacobian_

MatrixBaseconstraints_

bool ownConstraints_

RMatrix solutions_

RVector startModel_

bool verbose_

bool regionManagerInUse_

bool ownRegionManager_

Index nThreads_

Index nThreadsJacobian_


Additional Inherited Members

- Protected Member Functions inherited from GIMLI::ModellingBase
virtual void init_ ()

virtual void deleteMeshDependency_ ()

virtual void updateMeshDependency_ ()

virtual void updateDataDependency_ ()

void setMesh_ (const Mesh &mesh, bool update=true)


Detailed Description

Multidimensional polynomial modelling class.

Multidimensional polynomial modelling class. 1, 2 or 3 dimensional polynomial modelling operator based on PolynomialFunction

Member Function Documentation

◆ polynomialFunction()

const PolynomialFunction< double >& GIMLI::PolynomialModelling::polynomialFunction ( ) const
inline

Return read only reference to the Polynomial Functor.

◆ setPascalsStyle()

void GIMLI::PolynomialModelling::setPascalsStyle ( bool  is)
inline

Constrain to polynomial function based on Pascal's triangle, i.e., forbid x^iy^jz^k with (i +j +k) > size

◆ setSerendipityStyle()

void GIMLI::PolynomialModelling::setSerendipityStyle ( bool  is)
inline

Constrain the polynomial function serendipity style Pascal's triangle, i.e., forbid x^iy^jz^k with (i +j +k) > size+1. Just work if setPascalsStyle is set.

◆ startModel()

RVector GIMLI::PolynomialModelling::startModel ( )
virtual

Create starting model. The dimension is recognized here
one-dimensional: p[0][0][*] = 1
two-dimensional: p[0][*][*] = 1
three-dimensional: p[*][*][*] = 1

Reimplemented from GIMLI::ModellingBase.

References GIMLI::Vector< ValueType >::setVal().
