Geostatistical regularization

In this example we illustrate the use of geostatistical constraints on irregular meshes as presented by [JDGunther+18], compared to classical smoothness operators of first or second kind.

The elements of the covariance matrix \(\textbf{C}_{\text{M}}\) are defined by the distances H between the model cells i and j into the three directions

\[\textbf{C}_{\text{M},ij}=\sigma^{2}\exp{\left( -3\sqrt{\left(\frac{\textbf{H}^x_{ij}}{I_{x}}\right)^{2}+ \left(\frac{\textbf{H}^y_{ij}}{I_{y}}\right)^{2}+ \left(\frac{\textbf{H}^z_{ij}}{I_{z}}\right)^{2}}\right)}.\]

It defines the correlation between model cells as a function of correlation lenghts (ranges) \(I_x\), \(I_y\), and \(I_z\). Of course, the orientation of the coordinate axes is arbitrary and can be chosen by rotation. Let us illustrate this by a simple mesh:

Computing covariance and constraint matrices

We create a simple mesh using a box geometry

import matplotlib.pyplot as plt
from matplotlib.patches import CirclePolygon
from matplotlib.collections import PatchCollection
from matplotlib.colors import LogNorm
import numpy as np
import pygimli as pg
import pygimli.meshtools as mt

# We create a rectangular domain and mesh it with small triangles
rect = mt.createRectangle(start=[0, -10], end=[10, 0])
mesh = mt.createMesh(rect, quality=34.5, area=0.1)

# We compute such a covariance matrix by calling
CM = pg.utils.covarianceMatrix(mesh, I=5)  # I taken for both x and y
# We search for the cell where the midpoint (5, -5) is located in
ind = mesh.findCell([5, -5]).id()
# and plot the according column using index access (numpy)

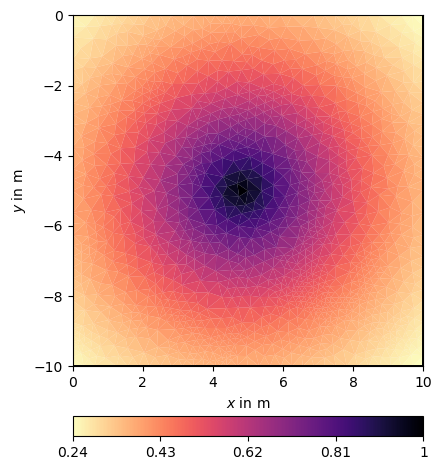

ax, cb = pg.show(mesh, CM[:, ind], cMap="magma_r")
plot 6 geostatConstraints

According to inverse theory, we use the square root of the covariance matrix as single-side regularization matrix C. It is computed by using an eigenvalue decomposition

\[\textbf{C}_\text{M} = \textbf{Q}\textbf{D}\textbf{Q}^{T}\]

based on LAPACK (numpy.linalg). The inverse square root is defined by

\[\textbf{C}_\text{M}^{-0.5} = \textbf{Q}\textbf{D}^{-0.5}\textbf{Q}^{T}\]

In order to avoid a matrix inverse (square root), a special matrix is derived doing the decomposition and storing the eigenvectors and eigenvalues values. A multiplication is done by multiplying with Q and scaling with the diagonal. This matrix is implemented in the matrix module by the class pg.matrix.Cm05Matrix

Cm05 = pg.matrix.Cm05Matrix(CM)

However, this matrix does not return a zero vector for a constant vector

out = Cm05 * pg.Vector(mesh.cellCount(), 1.0)
print("min/max value ", min(out), max(out))
min/max value  0.02159243432153806 0.20503355104238655

as desired for a roughness operator. Therefore, an additional matrix called pg.matrix.GeostatisticalConstraintsMatrix was implemented where this spur is corrected for. It is, like the correlation matrix, created by a mesh, a list of correlation lengths I, a dip angle that distorts the x/y plane and a strike angle towards the third direction.

C = pg.matrix.GeostatisticConstraintsMatrix(mesh=mesh, I=5)

In order to extract a column, we generate a vector with a single 1, multiply

vec = pg.Vector(mesh.cellCount())
vec[ind] = 1.0
cor = C * vec

and plot it using a linear or logarithmic scale

kwLin = dict(cMin=-1, cMax=1, cMap="bwr")

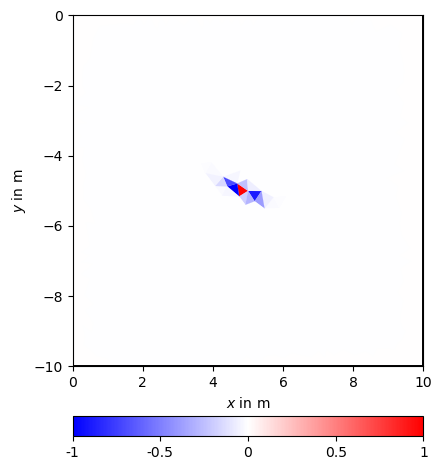

ax, cb = pg.show(mesh, cor, **kwLin)
kwLog = dict(cMin=1e-3, cMax=1, cMap="magma_r", logScale=True)

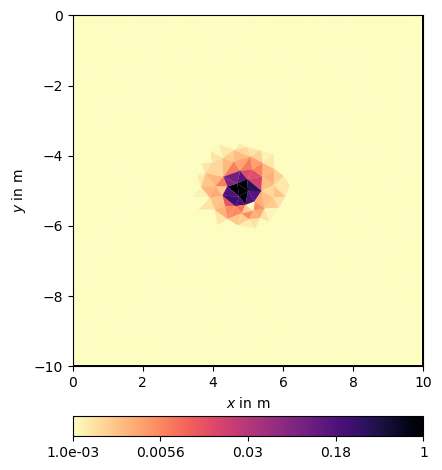

ax, cb = pg.show(mesh, pg.abs(cor), **kwLog)
  • plot 6 geostatConstraints
  • plot 6 geostatConstraints

The constraints have a rather small footprint compared to the correlation if one considers values below a certain threshold as insignificant.

Such a matrix can also be defined for different ranges and dip angles, e.g.

Cdip = pg.matrix.GeostatisticConstraintsMatrix(mesh=mesh, I=[9, 2], dip=-25)
ax, cb = pg.show(mesh, Cdip * vec, **kwLin)

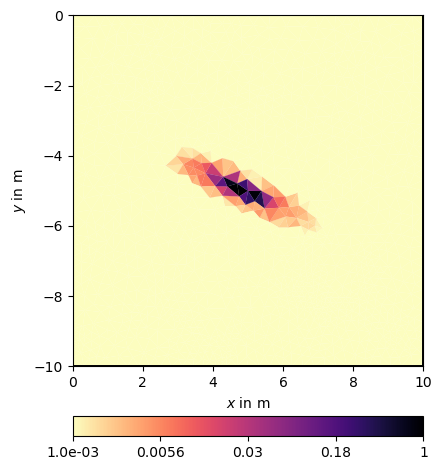

ax, cb = pg.show(mesh, pg.abs(Cdip * vec), **kwLog)
  • plot 6 geostatConstraints
  • plot 6 geostatConstraints

Even in the linear scale, but more in the log scale one can see the regularization footprint in the shape of an ellipsis.

In order to illustrate the role of the constraints, we use a very simple mapping forward operator that retrieves the values in the mesh at some given positions. The constraints are therefore used as interpolation operators. Note that the mapping forward operator can also be used for defining prior knowledge if combined with another forward operator in a classical joint inversion framework. In the initialization, the indices are stored and a mapping matrix is created that projects the model vector to the forward response. This matrix is also the Jacobian matrix for the inversion.

class PriorFOP(pg.Modelling):
    """Forward operator for grabbing values."""

    def __init__(self, mesh, pos, **kwargs):
        """Init with mesh and some positions that are converted into ids."""
        super().__init__(**kwargs)
        self.setMesh(mesh)
        self.ind = [mesh.findCell(po).id() for po in pos]
        self.J = pg.SparseMapMatrix()
        self.J.resize(len(self.ind), mesh.cellCount())
        for i, ii in enumerate(self.ind):
            self.J.setVal(i, ii, 1.0)

        self.setJacobian(self.J)

    def response(self, model):
        """Return values at the indexed cells."""
        return model[self.ind]

    def createJacobian(self, model):
        """Do nothing (linear)."""
        pass

Inversion with geostatistical constraints

We choose some positions and initialize the forward operator

pos = [[2, -2], [8, -2], [5, -5], [2, -8], [8, -8]]
fop = PriorFOP(mesh, pos)
# For plotting the results, we create a figure and define some plotting options
fig, ax = plt.subplots(nrows=2, ncols=2, sharex=True, sharey=True)
kw = dict(
    colorBar=True,
    cMin=30,
    cMax=300,
    orientation='vertical',
    cMap='Spectral_r',
    logScale=True)

# We want to use a homogenenous starting model
vals = [30, 50, 300, 100, 200]
# We assume a 5% relative accuracy of the values
error = pg.Vector(len(vals), 0.05)
# set up data and model transformation log-scaled
tLog = pg.trans.TransLog()
inv = pg.Inversion(fop=fop)
inv.transData = tLog
inv.transModel = tLog
inv.lam = 40
inv.startModel = 30
# Initially, we use the first-order constraints (default)
res = inv.run(vals, error, cType=1, lam=30)
print(('Ctype=1: ' + '{:.1f} ' * 6).format(*fop(res), inv.chi2()))
pg.show(mesh, res, ax=ax[0, 0], **kw)
ax[0, 0].set_title("1st order")
np.testing.assert_array_less(inv.chi2(), 1.2)

# Next, we use the second order (curvature) constraint type
res = inv.run(vals, error, cType=2, lam=25)
print(('Ctype=2: ' + '{:.1f} ' * 6).format(*fop(res), inv.chi2()))
pg.show(mesh, res, ax=ax[0, 1], **kw)
ax[0, 1].set_title("2nd order")
np.testing.assert_array_less(inv.chi2(), 1.2)

# Now we set the geostatistic isotropic operator with 5m correlation length
fop.setConstraints(C)
res = inv.run(vals, error, lam=15)
print(('Cg-5/5m: ' + '{:.1f} ' * 6).format(*fop(res), inv.chi2()))
pg.show(mesh, res, ax=ax[1, 0], **kw)
ax[1, 0].set_title("I=5")
np.testing.assert_array_less(inv.chi2(), 1.2)

# and finally we use the dipping constraint matrix
fop.setConstraints(Cdip)
res = inv.run(vals, error, lam=15)
print(('Cg-9/2m: ' + '{:.1f} ' * 6).format(*fop(res), inv.chi2()))
pg.show(mesh, res, ax=ax[1, 1], **kw)
ax[1, 1].set_title("I=[10/2], dip=25")
np.testing.assert_array_less(inv.chi2(), 1.2)

# plot the position of the priors
patches = [CirclePolygon(po, 0.2) for po in pos]
for ai in ax.flat:
    p = PatchCollection(patches, cmap=kw['cMap'])
    p.set_facecolor(None)
    p.set_array(np.array(vals))
    p.set_norm(LogNorm(kw['cMin'], kw['cMax']))
    ai.add_collection(p)

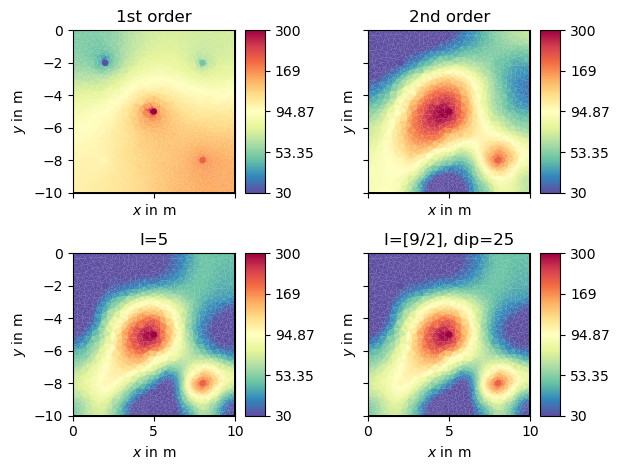

1st order, 2nd order, I=5, I=[10/2], dip=25
Ctype=1: 31.5 51.5 276.8 100.5 195.7 0.8


Ctype=2: 30.0 49.7 298.9 100.5 198.9 0.0


Cg-5/5m: 30.8 49.9 268.7 98.6 196.0 1.0


Cg-9/2m: 31.0 49.9 287.6 101.5 202.4 0.3

Note that all four regularization operators fit the data equivalently but the images (i.e. how the gaps between the data points are filled) are quite different. This is something we should have in mind using regularization.

Generating geostatistical media

For generating geostatistical media, one can use the function generateGeostatisticalModel. It computes a correlation matrix and multiplies it with a pseudo-random (randn) series. The arguments are the same as for the correlation or constraint matrices.

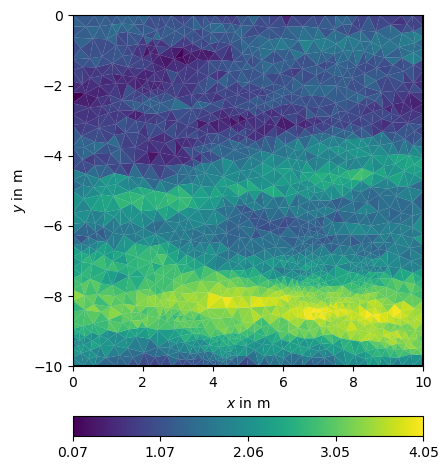

model = pg.utils.generateGeostatisticalModel(mesh, I=[20, 4])
ax, cb = pg.show(mesh, model)
plot 6 geostatConstraints
