pygimli.physics.seismics

Full wave form seismics utilities and simulations

Overview

Functions

drawSeismogramm(ax, mesh, u, dt[, ids, pos, i])

Extract and show time series from wave field

drawWiggle(ax, x, t[, xoffset, posColor, …])

Draw signal in wiggle style into a given ax.

ricker(f, t[, t0])

Create Ricker wavelet.

solvePressureWave(mesh, velocities, times, …)

Solve pressure wave equation.

Functions

drawSeismogramm

pygimli.physics.seismics.drawSeismogramm(ax, mesh, u, dt, ids=None, pos=None, i=None)[source]

Extract and show time series from wave field

Parameters
  • ids (list) – List of node ids for the given mesh.

  • pos (list) – List of positions for the given mesh. We will look for the nearest node.

drawWiggle

pygimli.physics.seismics.drawWiggle(ax, x, t, xoffset=0.0, posColor='red', negColor='blue', alpha=0.5, **kwargs)[source]

Draw signal in wiggle style into a given ax.

Parameters
  • ax (matplotlib ax) – To plot into

  • x (array [float]) – Signal.

  • t (array) – Time base for x

  • xoffset (float) – Move wiggle plot along x axis

  • posColor (str) – Need to be convertible to matplotlib color. Fill positive areas with.

  • negColor (str) – Need to be convertible to matplotlib color. Fill negative areas with.

  • alpha (float) – Opacity for fill area.

  • **kwargs (dict()) – Will be forwarded to matplotlib.axes.fill

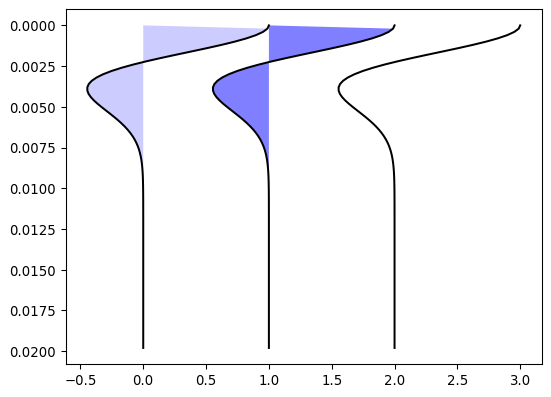

>>> from pygimli.physics.seismics import ricker, drawWiggle
>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> t = np.arange(0, 0.02, 1./5000)
>>> r = ricker(t, 100., 1./100)
>>> fig = plt.figure()
>>> ax = fig.add_subplot(1,1,1)
>>> drawWiggle(ax, r, t, xoffset=0, posColor='red', negColor='blue',
...            alpha=0.2)
>>> drawWiggle(ax, r, t, xoffset=1)
>>> drawWiggle(ax, r, t, xoffset=2, posColor='black', negColor='white',
...            alpha=1.0)
>>> ax.invert_yaxis()
>>> plt.show()

(png, pdf)

../../_images/pygimli-physics-seismics-1.png

ricker

pygimli.physics.seismics.ricker(f, t, t0=0.0)[source]

Create Ricker wavelet.

Create a Ricker wavelet with a desired frequency and signal length.

Parameters
  • f (float) – Frequency of the wavelet in Hz

  • t (array [float]) – Time base definition

  • t0 (float) – Offset time. Use 1/f to move the wavelet to start nearly from zero.

Returns

y – Signal

Return type

array_like

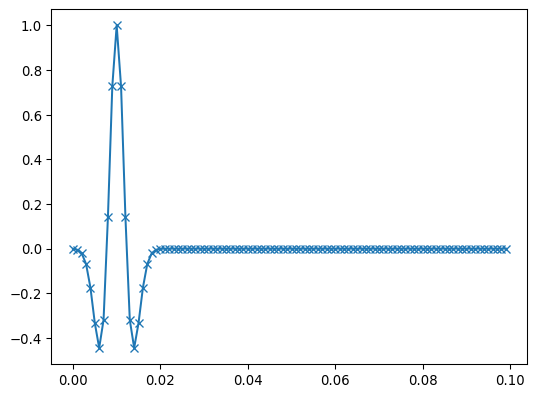

Create a 100 Hz Wavelet inside 1000 Hz sampled signal of length 0.1s.

>>> import matplotlib.pyplot as plt
>>> import numpy as np
>>> from pygimli.physics.seismics import ricker
>>> sampleFrequenz = 1000 #Hz
>>> t = np.arange(0, 0.1, 1./sampleFrequenz)
>>> r = ricker(100., t, 1./100)
>>> lines = plt.plot(t,r,'-x')
>>> plt.show()

(png, pdf)

../../_images/pygimli-physics-seismics-2.png

solvePressureWave

pygimli.physics.seismics.solvePressureWave(mesh, velocities, times, sourcePos, uSource, verbose=False)[source]

Solve pressure wave equation.

Solve pressure wave for a given source function

\[\begin{split}\frac{\partial^2 u}{\partial t^2} & = \diverg(a\grad u) + f\\ finalize equation\end{split}\]
Parameters
  • mesh (GIMLI::Mesh) – Mesh to solve on

  • velocities (array) – velocities for each cell of the mesh

  • time (array) – Time base definition

  • sourcePos (RVector3) – Source position

  • uSource (array) – u(t, sourcePos) source movement of length(times) Usually a Ricker wavelet of the desired seismic signal frequency.

Returns

u – Return

Return type

RMatrix

Examples

See TODO write example
